Panel Antenna 698-4000MHz 58dBi
Provide a 7-8 dBi gain for 1710 to 4000 MHz
Linear and Vertical Polarization
50 Ω Input Impedance
50W max. Input Power
DC Ground Lightning Protection
N Female Connector options
Panel Antenna 698-4000MHz 58dBi Description
This 4G-5G Indoor Wall Mount Panel Antenna, 698 to 4000 MHz, N Female is engineered to enhance mobile connectivity inside buildings. Supporting frequencies from 698 to 4000 MHz. It is suitable for both 4G LTE and 5G networks, making it an ideal choice for boosting signal strength across various indoor environments.
Key Features:
Provides a 5 dBi gain for 698 to 960 MHz
Provides a 7-8 dBi gain for 1710 to 4000 MHz
Linear and Vertical Polarization
50 Ω Input Impedance
50W max. Input Power
DC Ground Lightning Protection
N Female Connector options
High-Gain Performance
This panel antenna delivers impressive gain with values ranging from 5.5 dBi at lower frequencies (698-806 MHz) to 8 dBi at higher frequencies (1695-2700 MHz). With its semi-directional coverage, it provides broad signal propagation, ensuring a wide and effective coverage area.
Advanced Electrical Specifications
The antenna features a low VSWR of ≤1.8 across most frequency bands, which contributes to superior signal quality and minimal interference. It has a maximum input power of 50 W and boasts a low Passive Intermodulation (PIM) of < -150 dBc, ensuring reliable performance in multi-carrier environments.
Durable Construction
Built with a UV-stabilised ABS radome and an aluminium reflector, this Indoor Wall Mount Panel Antenna is designed to withstand various indoor conditions. It operates efficiently in a temperature range of -40 °C to +60 °C, ensuring long-term reliability.
Semi-Directional Design
This antenna offers a semi-directional radiation pattern, ensuring that signal coverage is both broad and effective, tailored to meet diverse installation needs.
Flexible Connectivity Options
This 4G-5G Indoor Wall Mount Panel Antenna comes with an N Female connector, offering reliable and secure connections, enhancing installation flexibility and ease of setup.
Specifications
Frequency Range(MHz) | 698-960 | 1710-2170 | 2200-2700 | 3400-4000 |
Gain(dBi) | 6.0±0.5 | 7.0±0.5 | 8.0±0.5 | 8.5±0.5 |
VSWR | ≤1.8 | |||
Polarization Type | Vertical polarization | |||
Vertical Beamwidth | 73° | 60° | 60° | 30° |
Horizontal Beamwidth | 80° | 65° | 60° | 55° |
PIM(IM3) | ≤-150dBc @ 2x2W | |||
Max Power | 50W | |||
Input Impendence | 50Ω | |||
Operating Temperature | -40 to +60℃ | |||
Relative Humidity | 5 to 95% | |||
Lightning Protection | DC ground | |||
Rated Wind Velocity | 210km/h |
Product Dimension

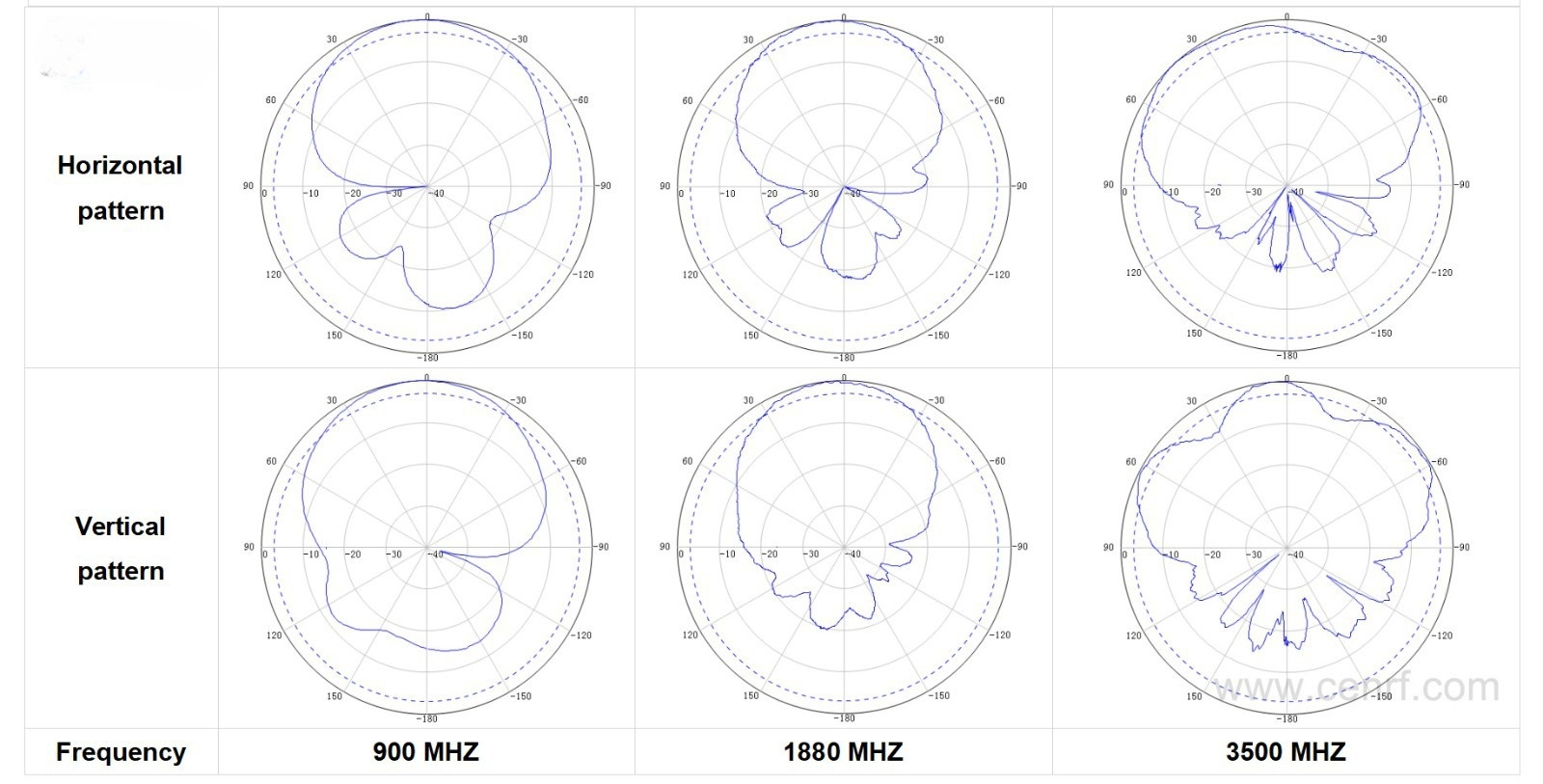

Radiation Patterns:
