5G RF MIMO Directional Panel Antenna 698-4000MHz 58dBi
VSWR:≤2.0
Polarization:Vertical and Horizontal
PIM(IM3):≤-140dBc @ 2x2W
Max Power:50W
Input Impedance:50Ω
Gain: 5/8dBi
Send Inquiry
Product Details of5G RF MIMO Directional Panel Antenna 698-4000MHz 58dBi
5G RF MIMO Directional Panel Antenna 698-4000MHz 58dBi Description
This antenna covers a wide frequency range from 698-4000MHz, and has excellent electrical performance at 2G, 3G, 4G and 5G frequency bands. It also provides a totally maintenance free ideal design and easy to be installed.
Specifications
| Electrical | |||||
| Frequency Range(MHz) | 698-806 | 806-960 | 1710-2170 | 2200-2700 | 3400-4000 |
| Gain(dBi) | 5.0±0.5 | 6.0±0.5 | 7.0±0.5 | 7.5±0.5 | 8.5±0.5 |
| VSWR | ≤2.0 | ||||
| Polarization Type | Vertical and Horizontal | ||||

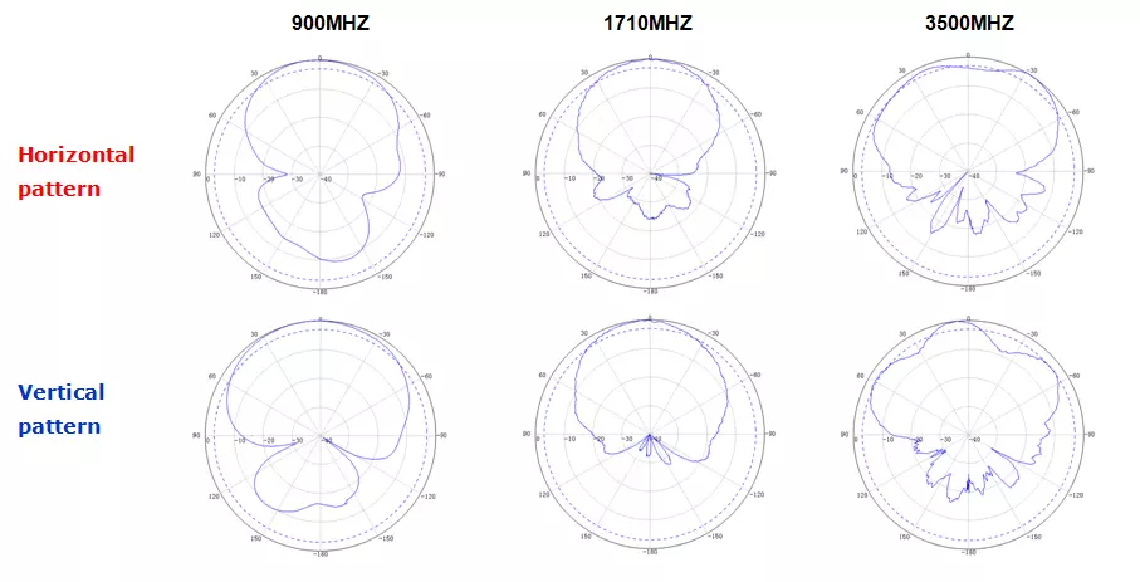

| Vertical Beamwidth | 73° | 70° | 60° | 60° | 30° |
| Horizontal Beamwidth | 80° | 80° | 65° | 60° | 55° |
| Connector Type | N Femalex2 | ||||
| PIM(IM3) | ≤-140dBc @ 2x2W | ||||
| Max Power | 50W | ||||
| Input Impendence | 50Ω | ||||
Product Dimension
Product image：
