5G Directional Panel Antenna 698-4000MHz
video
5G Directional Panel Antenna 698-4000MHz

5G Directional Panel Antenna 698-4000MHz

A specialized type of antenna that is designed to emit or receive wireless signals in one particular direction.
provide directional coverage with high gain and reduced interference.
Ideal for applications where wireless signals need to be transmitted or received over long distances.
Consist of multiple radiating elements arranged in a particular pattern on a flat panel, usually in a rectangular shape.
Send Inquiry
Product Details of5G Directional Panel Antenna 698-4000MHz



5G Directional Panel Antenna 698-4000MHz Description



Directional panel antenna is a specialized type of antenna that is designed to emit or receive wireless signals in one particular direction. These antennas can provide directional coverage with high gain and reduced interference, making them ideal for applications where wireless signals need to be transmitted or received over long distances.

They consist of multiple radiating elements arranged in a particular pattern on a flat panel, usually in a rectangular shape. Each element is responsible for transmitting or receiving signals in a specific direction, and the overall performance of the antenna is determined by the number, size, and spacing of the elements.

Product Details:

A directional panel antenna is a highly effective tool for wireless communication that operates across a broad spectrum of frequencies. This type of antenna is particularly useful for long-range, point-to-point transmission, and reception of signals, making it ideal for wireless communication networks, cellular networks, and other similar applications.

The directional panel antenna can operate across a wide range of frequencies, from 698MHz to 4000MHz. This means that it can be used for a variety of different wireless communication technologies, from 2G and 3G to 4G and 5G, as well as many other non-cellular wireless communication systems.

One of the most significant benefits of a directional panel antenna is its directionality. This means that it radiates energy in one particular direction, allowing it to focus the signal on a specific receiver. This can be particularly useful when attempting to establish a long-range wireless connection, or when trying to operate in environments with a lot of interference from other wireless signals.

Another benefit of the directional panel antenna is its ability to support multiple input, multiple output (MIMO) technology. MIMO technology allows for multiple antennas to be used simultaneously, increasing the overall throughput of the wireless network. This can be particularly useful in high-density environments, such as stadiums, airports, or shopping centers, where many users may be attempting to access the same wireless network at the same time.

The directional panel antenna is also highly durable and weather-resistant, making it ideal for outdoor installations. It is constructed from high-quality materials and can withstand extreme temperatures, high winds, and other environmental factors.

In conclusion, the directional panel antenna is a highly effective tool for wireless communication networks, cellular networks, and other similar applications. With its broad range of frequencies, directionality, MIMO technology, and weather resistance, it is an excellent choice for long-range, point-to-point transmission and reception of wireless signals.



Specifications



Frequency Range(MHz)698-9601710-21702200-27003400-4000
Gain(dBi)6.0±0.57.0±0.58.0±0.58.5±0.5
VSWR≤1.8
Polarization TypeVertical polarization

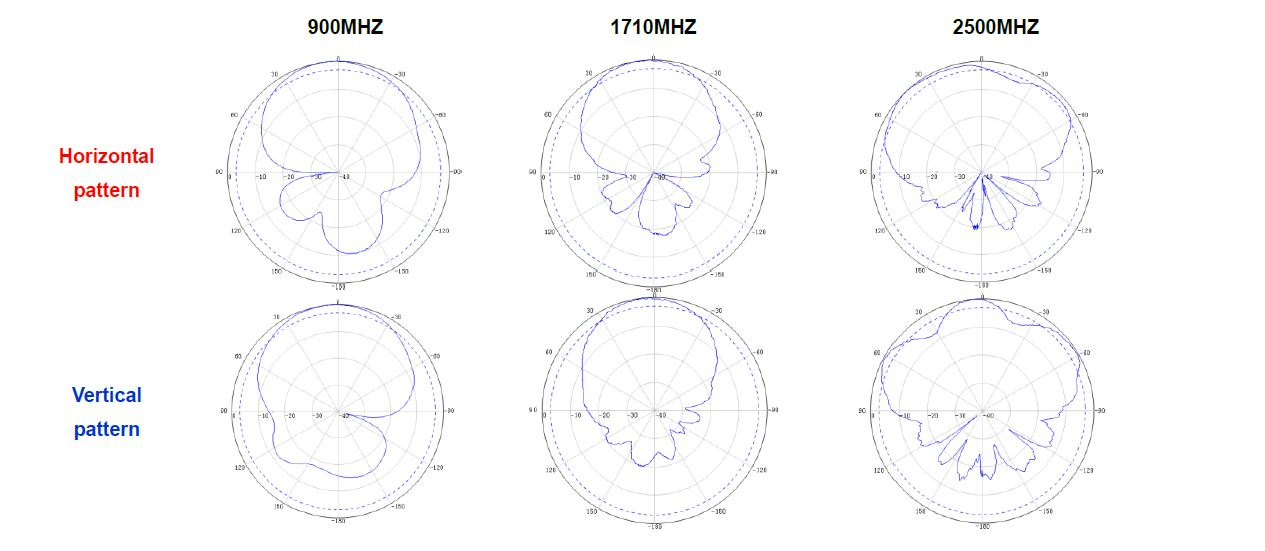

Vertical Beamwidth73°60°60°30°
Horizontal Beamwidth80°65°60°55°
PIM(IM3)≤-150dBc @ 2x2W
Max Power50W
Input Impendence50Ω
Connector TypeN-Female or 4.3-10 Female
Mounting TypeWall Mounting



Product Dimension







FAQ
