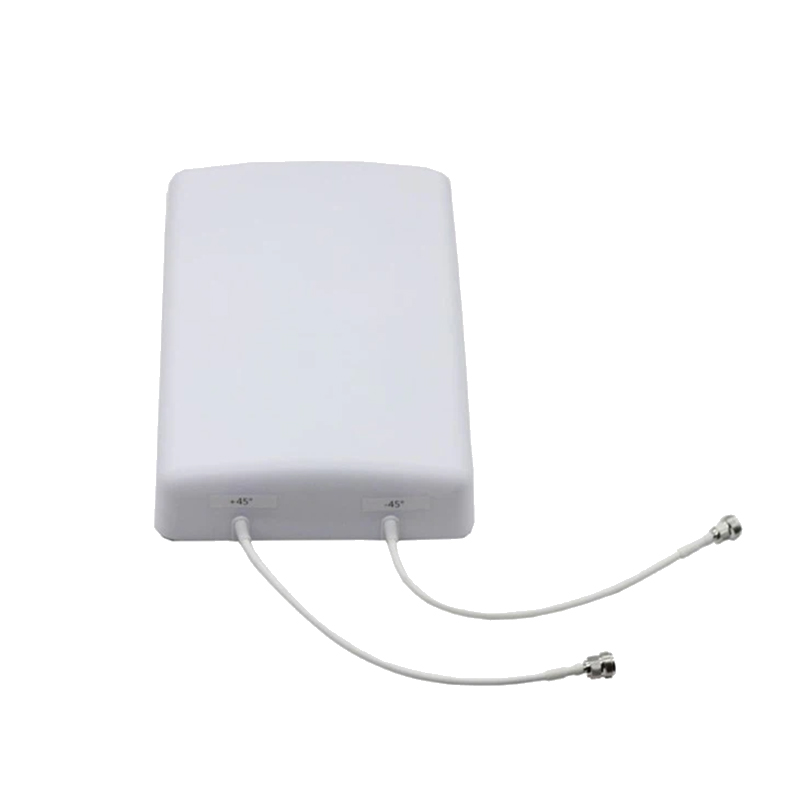

5G MIMO Directional Panel Antenna 698-4000MHz
video
5G MIMO Directional Panel Antenna 698-4000MHz

5G MIMO Directional Panel Antenna 698-4000MHz

1. Wideband covers 698 - 4000MHz.
2. Typically used in indoor distribution of MIMO and 5G & LTE services.
3. Low return loss, High gain, Stable performance.
4. Compact, light-weight and easy to install.
5. PIM <-140dBc @ 2x33dBm.
6. Wall mount design.
Send Inquiry
Product Details of5G MIMO Directional Panel Antenna 698-4000MHz



5G MIMO Directional Panel Antenna 698-4000MHz Description



1. Wideband Directional Antenna, covering 698 - 4000MHz.

2. Typically used in indoor distribution of MIMO and 5G & LTE services.

3. Low return loss, High gain, Stable performance.

4. Compact, light-weight and easy to install.

5. PIM <-140dBc @ 2x33dBm.

6.Dual Polarization ±45°for Whole Band 698-4000Mhz.

Product Details of5G MIMO Directional Panel Antenna 698-4000MHz

Products Details:

The 2x2 MIMO Panel Antenna 698-4000MHz is a high-performance antenna designed to meet the demands of modern wireless communication systems. This antenna is capable of operating over a wide frequency range, making it an ideal solution for a variety of applications.

Features:
1. Dual polarized design for improved diversity and spatial multiplexing
2. Compact and lightweight form factor for easy installation
3. IP65 rated waterproof and dustproof enclosure for outdoor use
4. 45° slant polarization for maximum signal-to-interference ratio
5. Excellent passive intermodulation performance to minimize interference

Advantages:


1. Dual polarized design provides higher data rates and better signal reliability
2. Compact and lightweight form factor enables quick and easy deployment
3. Waterproof and dustproof enclosure ensures reliable performance in harsh environments
4. 45° slant polarization reduces interference from adjacent cells and improves network capacity
5. Excellent passive intermodulation performance ensures clean transmission and reception signals, resulting in better overall system performance



Specifications



Frequency Range(MHz)698-806806-9601710-21702200-27003300-3800
Gain(dBi)6.0 ± 0.56.5 ± 0.57.0 ± 0.58.0 ± 0.58.5 ± 0.5
VSWR≤ 1.8
Polarization TypeLinear H / V for each Radiator
Vertical Beamwidth73°70°60°45°30°
Horizontal Beamwidth80°80°65°60°55°
PIM(IM3)≤ -150 dBc @ 2 x 33 dBm
Max Power50 W
Input Impendence50 Ω

Connector TypeN Female
Weight1.2 Kg
Dimension320 x 210 x 70 mm (without connector)
Radome MaterialUv-Protected ABS
Radome ColorWhite
Mounting TypeWall Mounting



Product Dimension

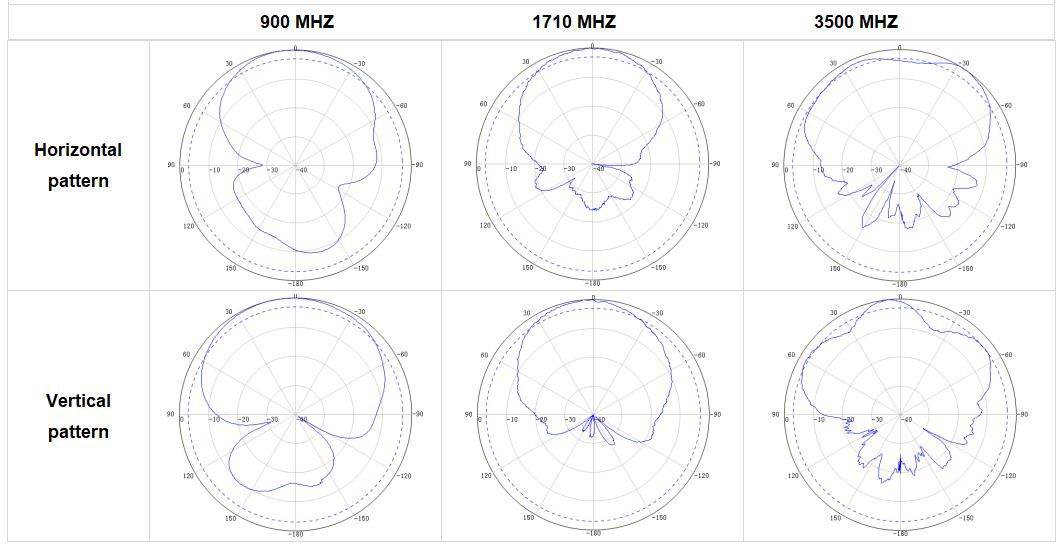

Radiation Patterns:
