MIMO Panel Antenna 5G With 4310 Connector
2.2. 5G Technology
3.Wide Frequency Range
4.Lightweight and Durable
Send Inquiry
Product Details ofMIMO Panel Antenna 5G With 4310 Connector

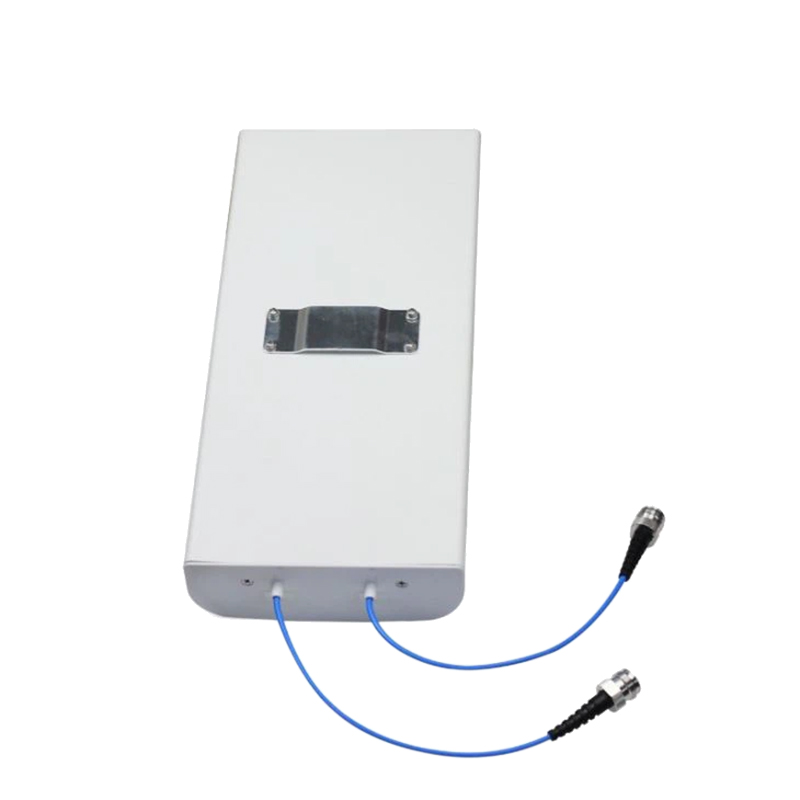

MIMO Panel Antenna 5G With 4310 Connector Description
The MIMO Panel Antenna 5G is a high-performance antenna designed to enhance cellular network coverage and capacity in 5G networks. It is sleek, compact and easy to install, making it ideal for both indoor and outdoor applications.
The MIMO Panel Antenna 5G with 4310 Connector is a high-performance antenna designed for 5G wireless communication systems. It is particularly suitable for urban environments and can be used in a variety of applications, including base stations, access points, and gateways.
Features:
1. Dual Polarization: The MIMO Panel Antenna features dual polarization, which provides better coverage and higher capacity compared to single-polarized antennas.
2. 5G Technology: The antenna is optimized for 5G wireless communication systems, offering high data rates and low latency.
3. Wide Frequency Range: The antenna operates over a wide frequency range from 3300-3800 MHz, making it compatible with a range of 5G networks.
4. Lightweight and Durable: The antenna is lightweight and durable, making it suitable for outdoor and indoor installations.
Advantages:
1. Improved Signal Quality: The MIMO Panel Antenna provides improved signal quality due to its dual polarization. This results in higher capacity and better coverage compared to single-polarized antennas.
2. High Data Rates: The antenna is optimized for 5G wireless communication systems, providing high data rates and low latency.
3. Easy Installation: The antenna's lightweight and compact design make it easy to install, reducing installation time and costs.
4. Durable Design: The antenna's rugged design ensures reliable performance in harsh outdoor environments.
Specifications
| Frequency Range(MHz) | 698-806 | 806-960 | 1710-2170 | 2200-2700 | 3400-4000 |
| Gain(dBi) | 5.0±0.5 | 6.0±0.5 | 7.0±0.5 | 7.5±0.5 | 8.5±0.5 |
| VSWR | ≤2.0 | ||||
| Polarization Type | ±45° | ||||
| Vertical Beamwidth | 73° | 70° | 60° | 60° | 30° |
| Horizontal Beamwidth | 80° | 80° | 65° | 60° | 55° |
| PIM(IM3) | ≤-140dBc @ 2x2W | ||||
| Max Power | 50W | ||||
| Input Impedance | 50Ω | ||||
Product Dimension

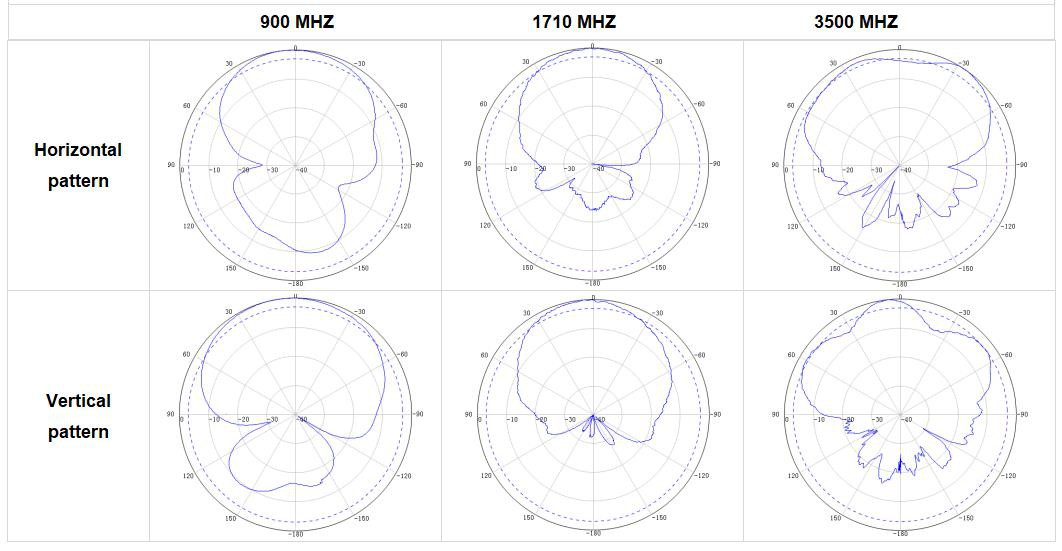

Radiation Patterns:
