Product Details of4x4 hybrid coupler



4x4 hybrid coupler Description



The Hybrid Coupler with DIN Connector is a high-performance device designed to provide reliable signal transfer in RF communication systems. With its unique DIN connector, this coupler offers a secure and stable connection, reducing the risks of signal loss or distortion.

1. Wide Frequency Range

2. High Directivity / Isolation

3. Cavity Structure, High Power Handing

4. Low Insertion Loss, Low VSWR, Low PIM(IM3)

Product Details:

The Hybrid Coupler 4in 4out 698-3800MHz is a cutting-edge RF component designed for high-performance signal distribution and power splitting applications. With its superior design and unmatched efficiency, this coupler is capable of handling a wide frequency range from 698MHz to 3800MHz with exceptional precision and reliability.

Features:

1. Wide Frequency Range: The Hybrid Coupler 4in 4out operates across a broad frequency range from 698MHz to 3800MHz, making it highly versatile for various wireless communication systems.
2. High Power Handling: This coupler is engineered to handle high power levels, ensuring optimal performance in demanding environments.
3. Low Insertion Loss: With extremely low insertion loss, this coupler minimizes signal degradation, resulting in improved system efficiency and maximum power transfer.
4. High Isolation: The Hybrid Coupler 4in 4out offers excellent isolation between the input and output ports, reducing crosstalk and ensuring reliable signal separation.
5. Compact and Durable: Its compact design allows for easy integration into new or existing systems, while its robust construction ensures long-lasting performance even in harsh conditions.


Advantages:

1. Enhanced Signal Distribution: The Hybrid Coupler 4in 4out provides efficient power splitting and signal distribution, enabling seamless transmission across multiple channels.
2. Improved System Performance: With its low insertion loss and high isolation, this coupler optimizes system performance, resulting in better overall efficiency and signal integrity.
3. Versatile Application: The wide frequency range and high power handling capabilities make this coupler suitable for a wide range of applications, including wireless communication networks, base stations, and distributed antenna systems.
4. Reliability and Durability: Built with high-quality materials and rigorous testing, this coupler offers unmatched reliability and durability, ensuring stable performance even in challenging operating conditions.
5. Cost-Effective Solution: The Hybrid Coupler 4in 4out provides a cost-effective solution for signal distribution, reducing the need for additional components and minimizing overall system costs.



Specifications



Electrical
Frequency Range698-3800 MHz
Input Avg. Power, max at each port300W
Coupling Value≤6±1.2 dB
Isolation≥25dB
VSWR≤1.25
PIM3≤-160dBc @2x43dBm
Impedance50Ω
Mechanical
Dimension, LxWxH (Ideal)214x99x62mm
Weight (Expected)2 kg
Connector4.3-10 female
IN Port4 Nos.
OUT Port4 Nos.
ColorBlack
Operational Temperature-25℃ to +65℃
Relative Humidity≤ 95%
ApplicationsIndoor or Outdoor
Waterproof GradeIP65
ColorBlack

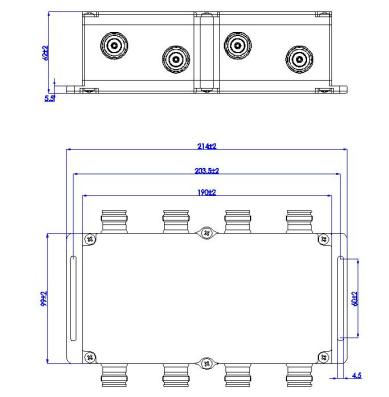

Product Dimension
