3×3 Hybrid Coupler
2. Simplified RF System Design: By offering a single component solution for signal distribution, this coupler streamlines RF system design, reducing complexity and minimizing component count, leading to cost savings and quicker time-to-market.
Send Inquiry
Product Details of3×3 Hybrid Coupler
3×3 Hybrid Coupler Description
Products Description

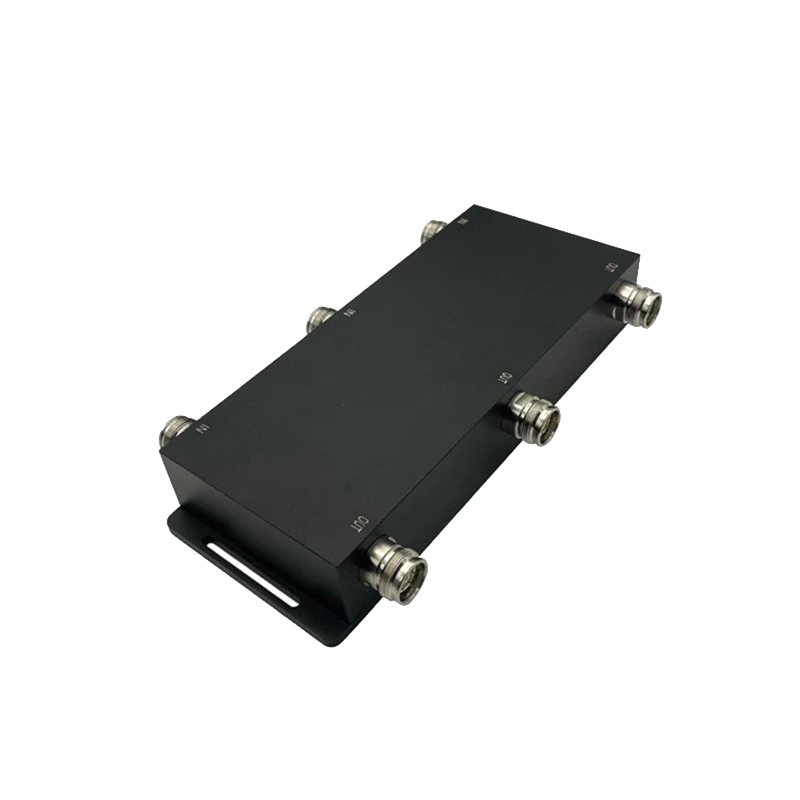

The 3-In 3-Out Hybrid Coupler is an advanced and versatile passive electronic component designed to efficiently combine or divide RF (Radio Frequency) and microwave signals. This coupler features a high-quality construction, allowing seamless integration into a wide range of applications in the telecommunications, aerospace, defense, and wireless communication industries.
Main Features:
1. Wide Frequency Range: The coupler operates within the frequency range of 698-3800 MHz, allowing support for a diverse range of high-frequency wireless communication systems.
2. 4.3-10 Female Connector: Equipped with a 4.3-10 Female connector, it ensures a reliable and efficient connection, minimizing signal loss and maximizing performance.
3. High Power Handling Capacity: With its robust design, the coupler is capable of handling high power levels, ensuring reliable and consistent performance even in demanding environments.
4. Compact Size: The compact form factor of the coupler makes it easy to install and integrate into existing setups, saving valuable space and reducing complexity.
Advantages:
1. Accurate Signal Monitoring: The directional coupler offers exceptional signal monitoring capabilities, allowing precise measurement and analysis of transmitted and received signals. This enables optimal performance and provides valuable troubleshooting possibilities.
2. Excellent Power Distribution: The device ensures efficient power distribution between input and output ports, enabling seamless signal transmission across the system with minimal loss.
3. Versatile Application: Its wide frequency range and high power handling capacity make it suitable for various high-frequency wireless communication systems, including 4G/5G networks, radar systems, and satellite communications.
4. Durable and Reliable: Constructed with high-quality materials and advanced engineering, the coupler is highly durable and reliable, providing long-term operation without degradation in performance.
5. Easy Integration: The 4.3-10 Female connector allows for easy integration into existing setups, eliminating the need for additional adapters or connectors, thus simplifying installation and reducing costs.
Specifications
| Product Model | RFH3-698-380T |
| FrequencyRange (MHz) | 698-3800MHz |
| Insertion Loss(dB) | 6±0.8 dB |
| Isolation(dB) | ≥ 23 dB |
| Return Loss(dB) | ≥18 |
| VSWR(dB) | ≤ 1.3 |
| PIM3(dBm) | ≤ -155 dBc (with 2 x 43dBm) |
| Maximum Input (W) | 300 W/500W |
| Operating temperature(℃) | -25℃ to +70℃ |
| Relative humidity(℃) | 0 ~ 95 % |
| Impedance（Ω） | 50 Ω |
| Size（mm） | 244.4 x 125 x 41 mm |
| Weight(g) | 2300 g |
| Connector Type | N Female /4.3-10 Female/DIN Female |
| Ingress protection | IP67 |
| Color | Grey(ML440c)/Black |
| ROHS | Meet |

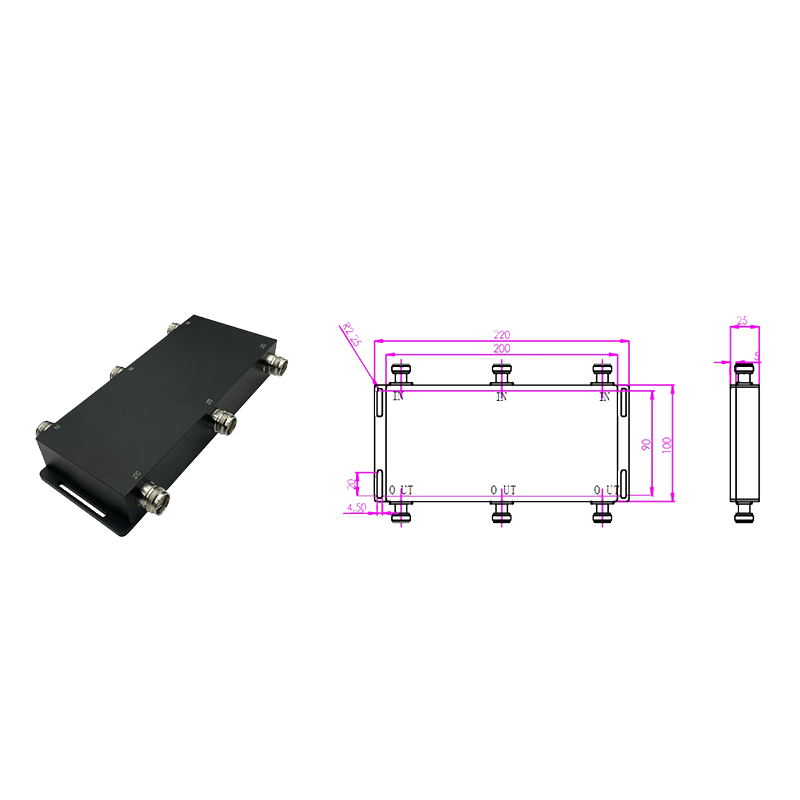

Product Dimension
