Product Details of3x3 Hybrid 698-3800MHz



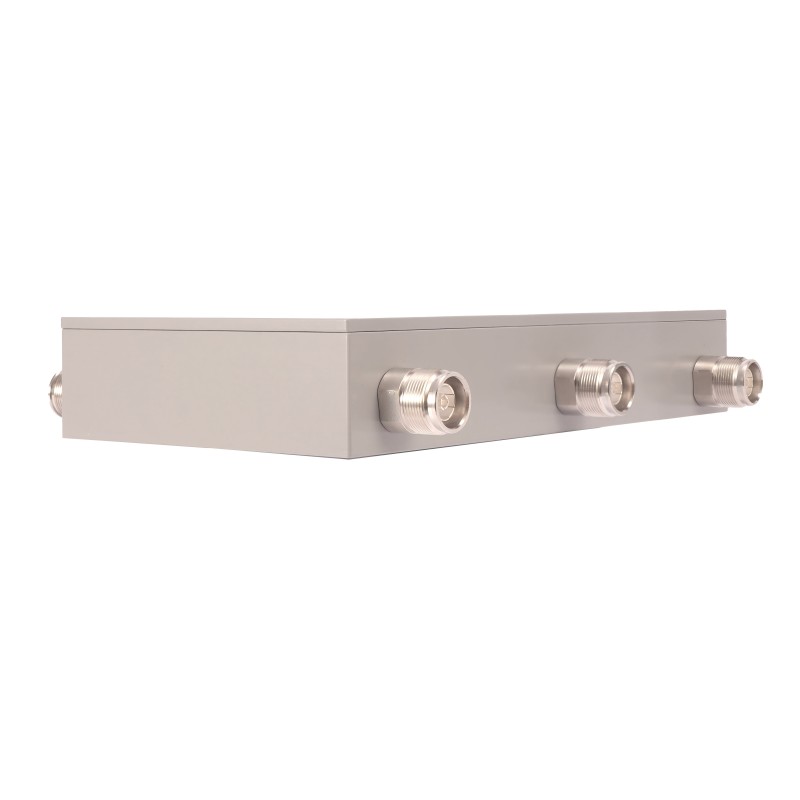

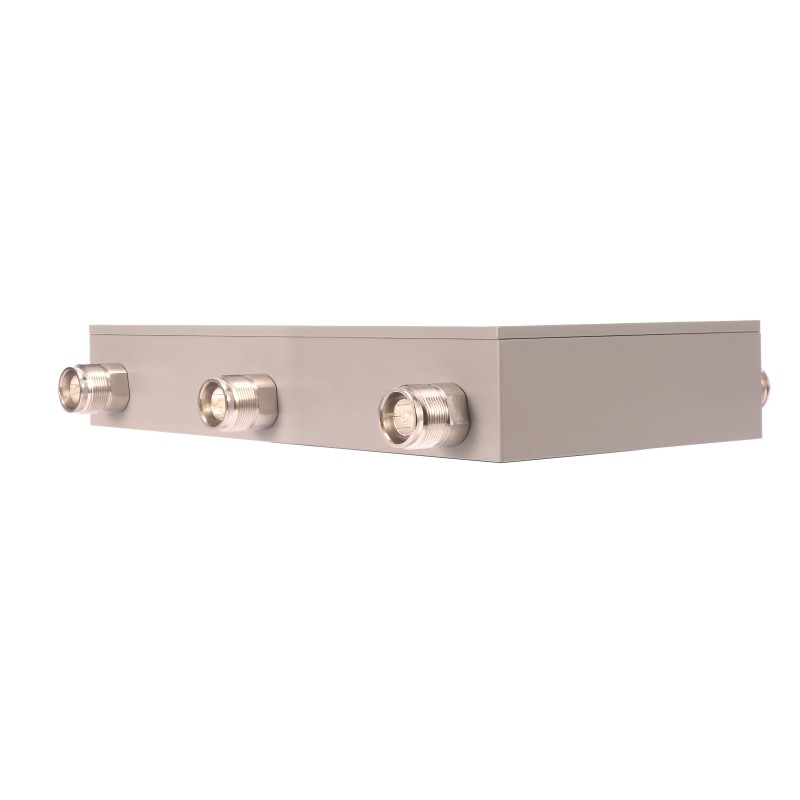

3x3 Hybrid 698-3800MHz Description



Products Description:

The 3-In 3-Out Hybrid Coupler is an advanced and versatile passive electronic component designed to efficiently combine or divide RF (Radio Frequency) and microwave signals. This coupler features a high-quality construction, allowing seamless integration into a wide range of applications in the telecommunications, aerospace, defense, and wireless communication industries.

Main Features:

1. High Signal Isolation: The 3-In 3-Out Hybrid Coupler ensures exceptional signal isolation, minimizing any undesired coupling effects and guaranteeing superior performance in complex signal environments.

2. Compact Design: With its compact form factor, this hybrid coupler offers a space-efficient solution, making it ideal for applications with limited physical space or tight layout constraints.

3. Broadband Frequency Coverage: The coupler operates over an extended frequency range, providing excellent bandwidth support, which makes it suitable for a variety of applications requiring high-frequency operation.

4. Low Insertion Loss: With industry-leading low insertion loss, the coupler maintains signal integrity and preserves signal strength, ensuring minimal signal degradation during signal combining or dividing processes.

5. High Power Handling Capability: The hybrid coupler is engineered to handle high power levels efficiently, ensuring reliable performance under demanding conditions and robustness in high-power applications.

Advantages:

1. Enhanced System Flexibility: The 3-In 3-Out Hybrid Coupler offers a flexible solution for combining or dividing multiple signals with precise control, enabling seamless integration into complex RF systems.

2. Improved Signal Quality: By delivering high isolation and low insertion loss, the coupler helps maintain signal integrity and enhances overall signal quality, resulting in improved system reliability and performance.

3. Space and Cost Savings: With its compact design and exceptional performance characteristics, this hybrid coupler eliminates the need for additional components, reducing both space requirements and overall system costs.

4. Wide Application Range: The coupler's broadband frequency coverage and high power handling capabilities make it a versatile component suitable for various applications, including base stations, radar systems, and wireless communication networks.

5. Long-lasting Durability: Crafted from premium-quality materials, the 3-In 3-Out Hybrid Coupler ensures long-lasting durability and reliability, even in challenging environmental conditions, reducing maintenance costs and downtime.

In summary, the 3-In 3-Out Hybrid Coupler is an indispensable component that offers outstanding signal performance, system flexibility, and cost-efficiency, making it an ideal choice for today's advanced RF and microwave applications.



Specifications



Product ModelRFH3-698-380T
FrequencyRange (MHz)698-3800MHz
Insertion Loss(dB)6±0.8 dB
Isolation(dB)≥ 23 dB
Return Loss(dB)≥18
VSWR(dB)≤ 1.3
PIM3(dBm)≤ -155 dBc (with 2 x 43dBm)
Maximum Input (W)300 W/500W
Operating temperature(℃)-25℃ to +70℃
Relative humidity(℃)0 ~ 95 %
Impedance(Ω)50 Ω
Size(mm)244.4 x 125 x 41 mm
Weight(g)2300 g
Connector TypeN Female /4.3-10 Female/DIN Female
Ingress protectionIP67
ColorGrey(ML440c)/Black
ROHSMeet

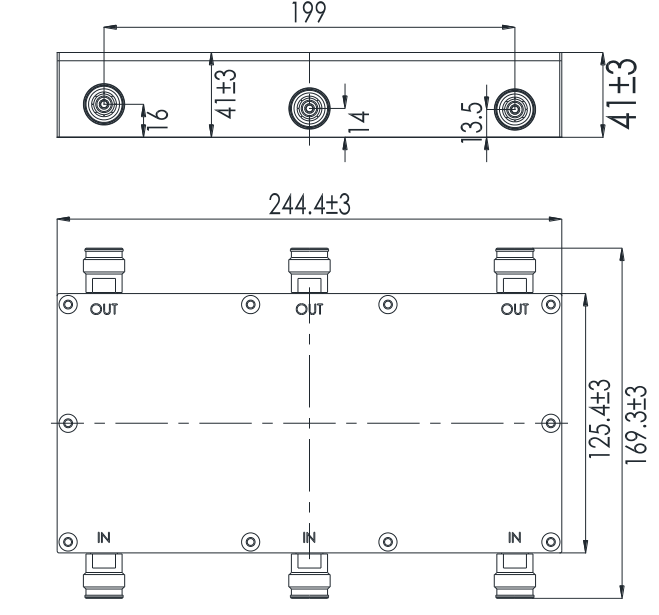

Product Dimension
