Product Details ofMIMO Panel Antenna 4-Port

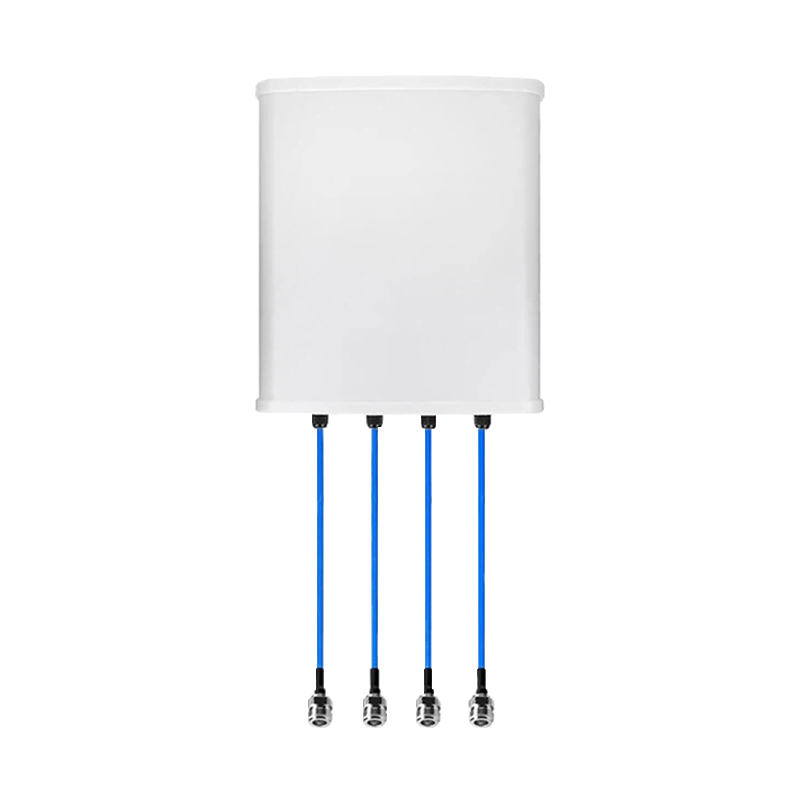

MIMO Panel Antenna 4-Port Description
The MIMO Panel Antenna 4 Ports 698-3800MHz is a cutting-edge antenna designed for high-performance wireless communication systems. With its advanced features and superior performance, this antenna is ideal for various applications, including cellular networks and wireless broadband.
Features:
1. Wide Frequency Range: This antenna covers a wide frequency range from 698MHz to 3800MHz, making it compatible with multiple wireless communication standards and ensuring flexible deployment.
2. 4 Port Design: Equipped with four ports, this antenna allows for efficient MIMO transmission, facilitating enhanced data throughput and improved network capacity.
3. High Gain: The antenna boasts high gain, enabling long-range communication and greater signal coverage, even in challenging environments.
4. Directional Coverage: With its directional beam pattern, this antenna provides focused coverage, allowing for better signal quality and reduced interference.
Advantages:
1. Enhanced Network Performance: The use of MIMO technology, combined with the high gain and directional coverage of this antenna, results in improved network performance, delivering faster data speeds, better signal quality, and a more seamless user experience.
2. Increased Capacity and Efficiency: The 4-port design enables multiple data streams to be transmitted simultaneously, increasing network capacity and efficiency. This is especially advantageous in congested areas with a high number of users.
3. Flexible Deployment Options: The wide frequency range and compact size of this antenna allow for flexible deployment in various environments, whether it’s a densely populated urban area or a remote rural location.
4. Durable and Weatherproof: Built with high-quality materials, this antenna is weatherproof and can withstand harsh conditions, ensuring reliable performance and durability.
Specifications
| Frequency range (MHz) | 698-960 | 1710-2700 | 3300-3800 |
| Polarization | ±45º | ||
| Gain（dBi） | 9 | 10 | 10 |
| Half-power beam width（°） | H:65 V:32 | H:55 V:28 | H:40 V:28 |
| Front-to-back ratio（dB） | ≥22 | ≥22 | ≥22 |
| Isolation（dB） | ≥23 | ≥23 | ≥23 |
| Input Impedance（Ω） | 50 | ||
| VSWR | ≤1.8 | ≤1.5 | ≤1.8 |
| Power（W） | 400 | ||
| Lightning protection | DC Ground | ||
| Input connector type | 4*N Female |
| Dimensions (mm) | 450*416*136 |
| Packing size（mm） | 540*480*255 |
| Antenna weight （kg） | 6.5 |
| Radome material | UPVC |
| Radome color | Gray |
| Mechanical tilt（°） | 0～10 |
| Operating temperature（°c） | -40～60 |
| Rated Wind Velocity（m/s） | 60 |
| Mounting hardware（mm） | ￠35～￠75 |
Product Dimension

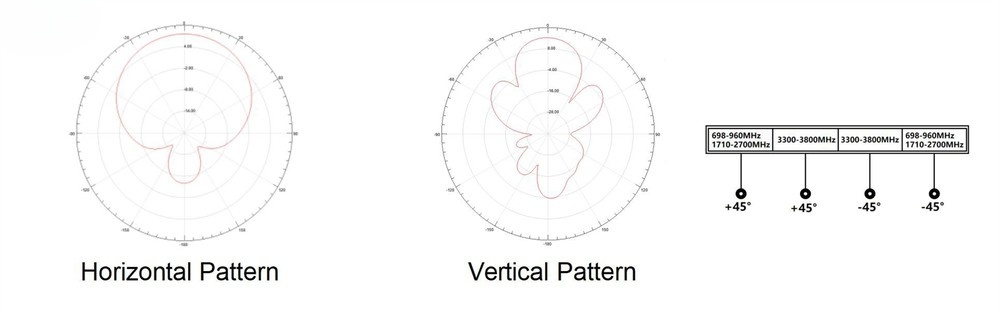

Radiation Patterns:

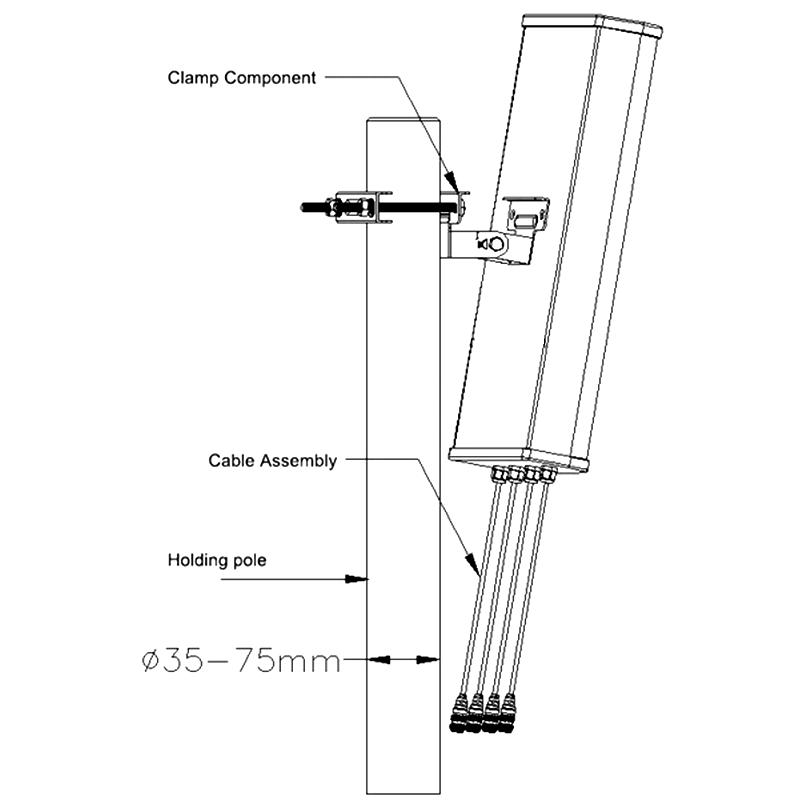

Installation Instructions :
Please following the steps below:
1. place the antenna on the pole, and adjust the inclination of the antenna, then fasten the screw to the screw nut. The final structure is just like the pictures above.
2. Unscrew and take the screw nuts, the spring washer and flat washer of the sawtooth clamps on the upper and lower sides of the antenna down,then remove the outer sawtooth clamp.Put the end of the antenna with connectors downwards.Then attach the sawtooth clamps to the pole whose outer diameter is ￠35~￠90mm ,and place the M10 screws through the sawtooth clamps.Lastly, put on the flat washer and spring washer and screw the nuts tightly afterwards.
3. Take down the connector cover of the antenna,connect the antenna connectors and make sure that you have sealed the connections well.
4. Loosen the bolts that connect the two struts and adjust the inclination of the antenna to the proper position to receive the best signal. At last screw all the nuts tightly.
