8-port BTS Antenna 1710-2690 18dBi
video

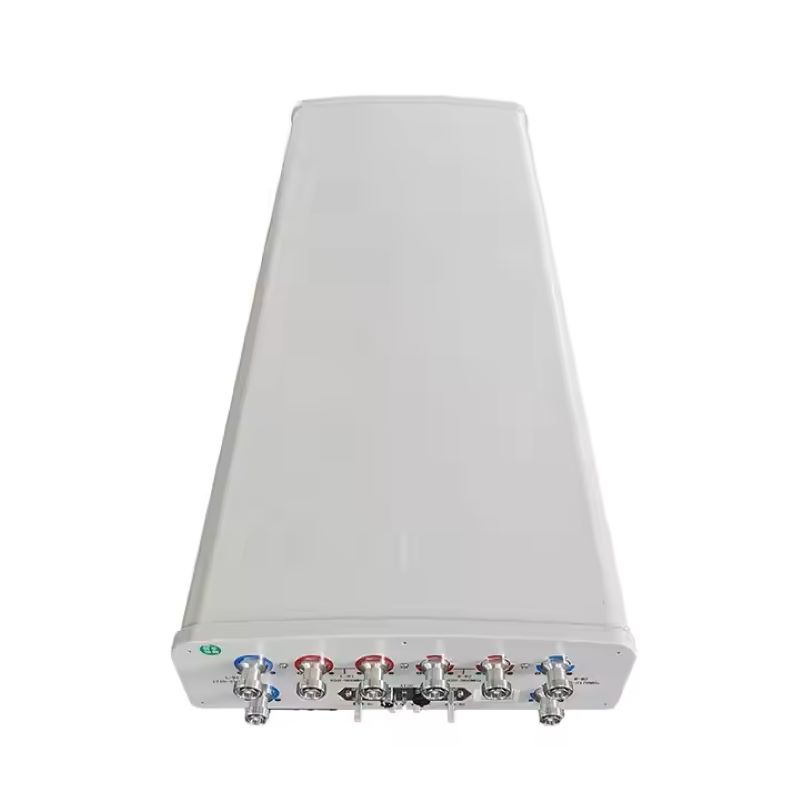

8-port BTS Antenna 1710-2690 18dBi

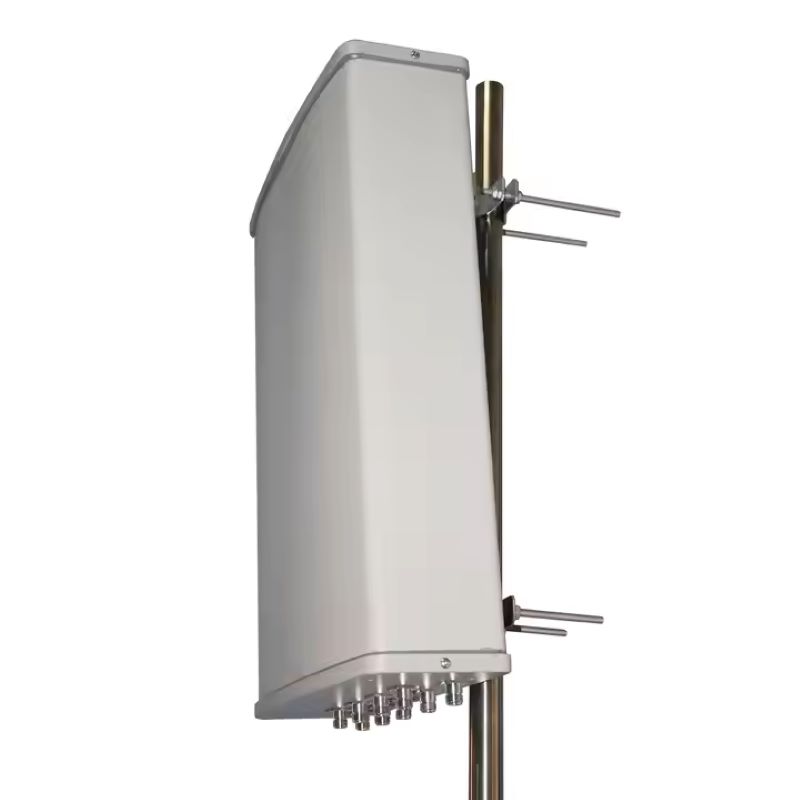

8-port BTS Antenna 1710-2690 18dBi

4X-Pole 1710-2690MHz 18dBi 65°HPBW
0°~10°T Integrated RET (AISG 2.0)
8 x 4.3-10 Connectors
height 1.47meter
Send Inquiry
Product Details of8-port BTS Antenna 1710-2690 18dBi



8-port BTS Antenna 1710-2690 18dBi Description



4X-Pole 1710-2690MHz 18dBi 65°HPBW

0°~10°T Integrated RET (AISG 2.0)

8 x 4.3-10 Connectors

height 1.47meter



Specifications



Electrical
Frequency Range (MHz)4×(1710-2690)(Y1,Y2,Y3,Y4)
Frequency Sub-Range (MHz)1710-19201920-21802300-24002500-2690
Polarization (°)±45
Electrical Downtilt (°)0-10 (Independent electric regulator)
Gain (dBi)Mid tilt17.117.617.918.0
Over all tilts17.0±0.517.5±0.517.8±0.517.9±0.5
First upper Side Lobe Suppression (dB)>16>16>17>17
Azimuth Beamwidth 3dB (°)68±464±459±458±4
Elevation Beamwidth 3dB (°)6.3±0.15.7±0.35.2±0.24.8±0.2
Cross-Polar Ratio @0°(dB)>24>24>21>21
Cross-Polar Ratio @±60° (dB)>10>10>9>9
Front to Back Ratio,180°±30° (dB)>26>26>26>26
VSWR<1.5
3rd PIM@2 x 43 dBm (dBc)<-150
Isolation: intra-system (dB)>28
Isolation: inter-system (dB)>28
Max. power per port(W)250
Impedance (Ω)50
Lightning ProtectionDC Ground
Mechanical
RET typeIntegrated RET (AISG2.0/3GPP)
AISG Connectors(1 input and 1 output)(in:Male;out:Female)
Connector8×4.3-10 female, Bottom
Antenna dimensions (H x W x D) (mm)1470×480×135
Packing dimensions (H x W x D) (mm)1730×560×236
Antenna weight (kg)20±0.5
Clamps weight (kg)5.2±0.5
Packing weight(kg)27.6±0.5
Diameter of installation polef50 ~f110mm
Radome materialFiberglass (UV Resistance)
Radiator materialLow Loss Circuit Board
Reflector materialAluminum Alloy
Mechanical Tilt Range (°)0~10
Radome colorLight grey
Operational temperature (℃)-40 to +70
Relative Humidity (%)5 to 95
Wind load @150km/h (N)587/206/653(Frontal/Lateral/Maximum)
Max. operational wind speed (km/h)241

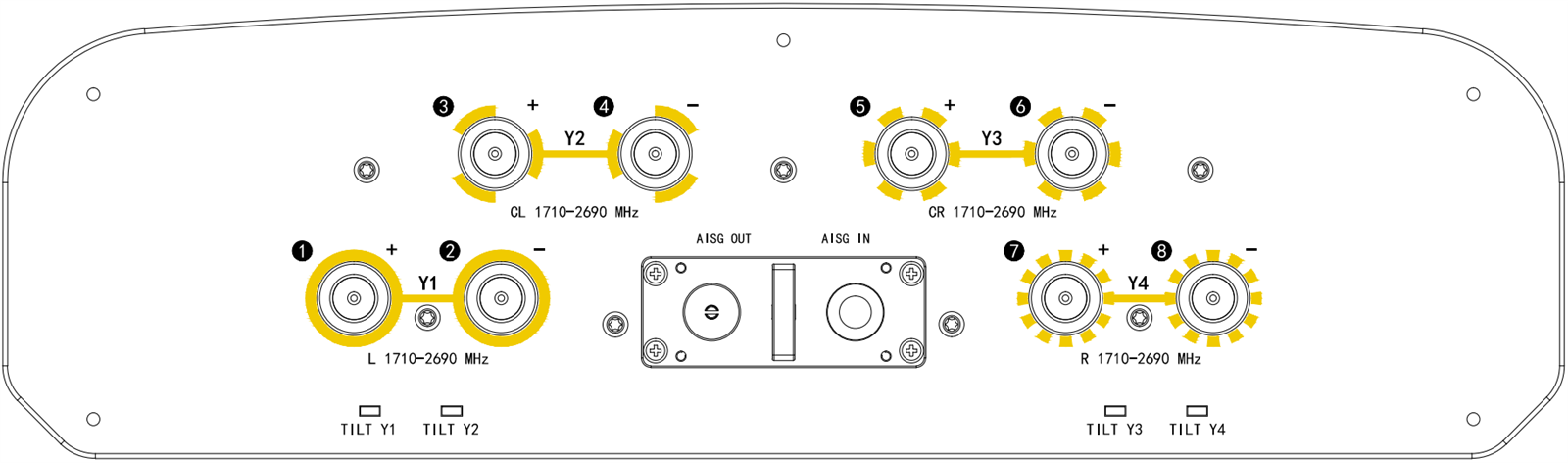

Layout
Frequency RangeArrayConnector
1710-2690MHzY1/Y2/Y3/Y41-2/3-4/5-6/7-8

Pattern
1710-2690MHz
Accessories
ItemModelWeight (kg)Mechanical Tilt Range (°)
Mounting Kit38AA5.2±0.50-10
