4×4 MIMO Panel Antenna 1695-3800MHz
2. Full day working
3. Wireless communication and data transmission system
4. Provides 4x4 MIMO configuration for increased data rates.
5. Supports 2.3 GHz to 2.7 GHz frequency range.
6. Panel mount design for optimal placement and easy installation.
7. Narrow beam width for better signal isolation.
8. Best-in-class cross-polarization discrimination for superior performance in high interference environments.
Send Inquiry
Product Details of4×4 MIMO Panel Antenna 1695-3800MHz
4×4 MIMO Panel Antenna 1695-3800MHz Description
1. Provide 4x4 MIMO configuration for increased data rates.
2. Support 2.3 GHz to 2.7 GHz frequency range.
3. Panel mount design for optimal placement and easy installation.
4. High gain for extended coverage area.
5. Narrow beam width for better signal isolation.
6. Best-in-class cross-polarization discrimination for superior performance in high interference environments.
Product Details
The 4x4 MIMO Panel Antenna is a high-performance antenna designed for use in outdoor environments. It is ideal for use in applications such as fixed wireless access networks, base station antennas, and backhaul links. This antenna operates in the 2.3 GHz to 2.7 GHz frequency range and has a gain of 18 dBi.
Features:
1. High gain
2. Full day working
3. Wireless communication and data transmission system
4. Provides 4x4 MIMO configuration for increased data rates.
5. Supports 2.3 GHz to 2.7 GHz frequency range.
6. Panel mount design for optimal placement and easy installation.
7. Narrow beam width for better signal isolation.
8. Best-in-class cross-polarization discrimination for superior performance in high interference environments.
Advantages:
1. Increased data rates: The 4x4 MIMO configuration allows for higher data rates and better overall network performance.
2. Extended coverage area: The high gain and narrow beam width of the antenna allow for an extended coverage area, reducing the need for additional antennas.
3. Easy installation: The panel mount design allows for easy installation and optimal placement, reducing installation time and costs.
4. Better signal isolation: The narrow beam width allows for better signal isolation, reducing the likelihood of interference from nearby antennas.
5. Superior performance in high interference environments: The best-in-class cross-polarization discrimination allows for superior performance in high interference environments, ensuring maximum throughput and reliability.
Specifications
| Model No. | RFP-1638-P45711-M8413 | |||||
| Frequency(MHz) | 1695-1880 | 1850-1990 | 1920-2180 | 2300-2400 | 2496-2690 | 3400-3800 |
| Polarization | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° |
| Gain | 10.9dBi | 11.0dBi | 11.2dBi | 11.3dBi | 11.5dBi | 7.8dBi |
| Gain (Average) | 9.5dBi | 9.6dBi | 9.9dBi | 10.3dBi | 10.5dBi | 7.4dBi |
| Horizontal Beamwidth | 67° | 69° | 69° | 70° | 71° | 73° |
| Vertical Beamwidth | 47° | 45° | 43° | 38° | 34° | 72° |
| VSWR | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Electrical Downtilt | 4° | 4° | 4° | 4° | 4° | 0° |
| Front-to-Back Ratio | ≥25dB | ≥25dB | ≥25dB | ≥25dB | ≥25dB | ≥25dB |
| Intermodulation (2*43dBm) | ≤-153 dBc | ≤-153 dBc | ≤-153 dBc | ≤-153 dBc | ≤-153 dBc | NA |
| Isolation | ≥25dB | ≥25dB | ≥25dB | ≥25dB | ≥25dB | ≥25dB |
| Cross-Polar Discrimination | ≥21dB | ≥19dB | ≥20dB | ≥19dB | ≥19dB | ≥19dB |
| Impedance | 50Ω | |||||
| Input Power | 120W | 120W | 120W | 120w | 120w | 120w |
| Lightning rotection | DC Ground | |||||

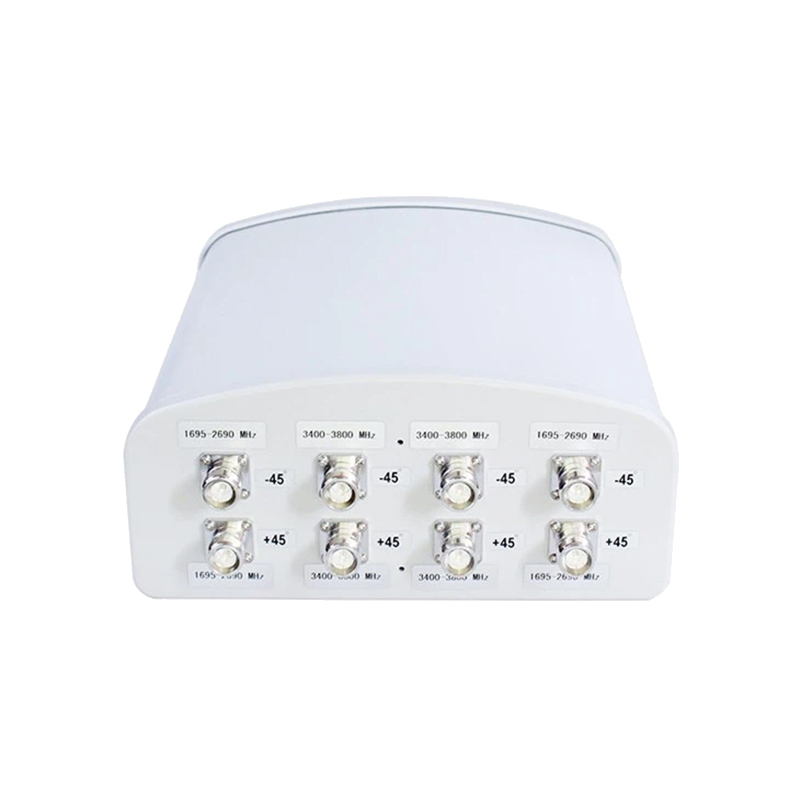

| Connector | 8*4.3-10 Female | |||||
| Dimensions | 300*280*130（mm） | |||||
| Radome Material | PVC | |||||
| Radome Color | Gray | |||||
| Operational emperature | -40ºC/+60ºC | |||||
| Mounting hardware | φ30-φ60(mm) | |||||
| Rated Wind elocity | 60m/s | |||||
Product Dimension

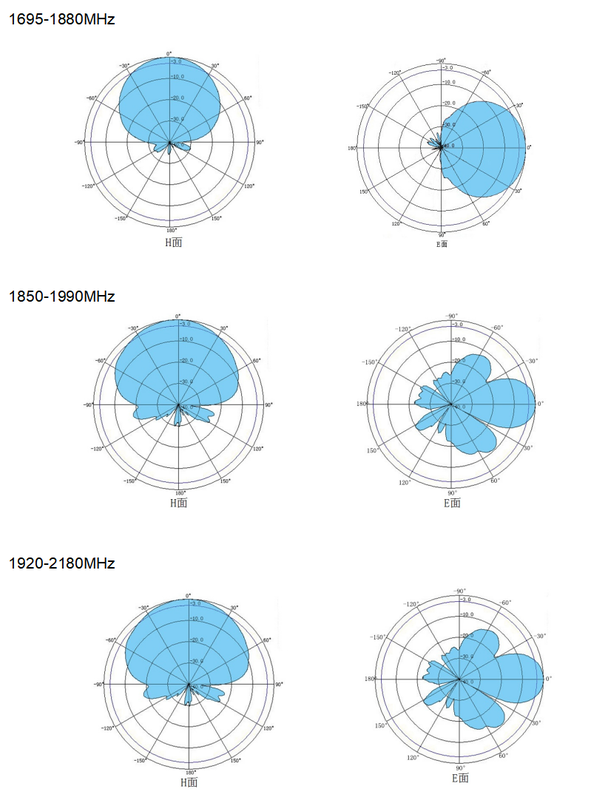

Radiation Patterns:
