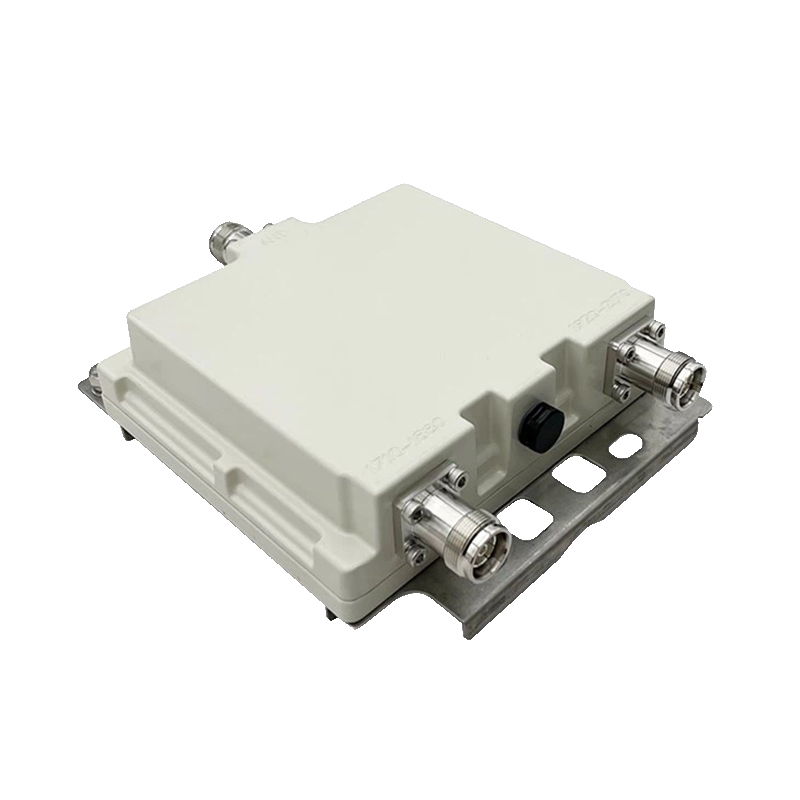

RF 2-WAY COMBINER

The 5G 2-way RF combiner 698-2700MHz & 3300-3800MHz is a high-performance device designed for use in wireless communication systems. This combiner can combine two input signals into one output signal, making it ideal for use in 5G small cell base stations. Its compact size and rugged design make it suitable for indoor or outdoor applications.

Main Features:

1. Combines two input signals into one output signal for easy signal integration.
2. Wide operating frequency range from 617 MHz to 2700 MHz.
3. High isolation between output and input ports to minimize signal interference.
4. Low insertion loss for minimal signal degradation.
5. Rugged design for use in harsh environments.

Performance:

1. Frequency range: 698 MHz to 2700 MHz
2. Insertion loss: 0.25 dB
3. Isolation: >20 dB between output and input ports
4. Impedance: 50 ohms
5. VSWR: ≤1.2:1

Advantages:

1. Efficient signal integration: The 5G 2way RF combiner can combine two input signals into one output signal for easier signal integration and improved overall system performance.
2. Minimal signal degradation: The low insertion loss and high isolation between output and input ports minimize signal degradation, resulting in higher signal quality and better overall system performance.
3. Versatile installation: The compact size and rugged design make it ideal for use in a variety of indoor and outdoor applications.
4. Minimized interference: The high isolation between output and input ports minimizes signal interference, providing better overall system performance.
