2 Way Combiner 1710-1880 1920-2690MHz
Combiner For Feeder Sharing
High Power Handing, High Reliability
Low Insertion Loss, Low VSWR, Low PIM(IM3)
Send Inquiry
Product Details of2 Way Combiner 1710-1880 1920-2690MHz
2 Way Combiner 1710-1880 1920-2690MHz Description
Main Features:
Combiner For Feeder Sharing
High Power Handing, High Reliability
Low Insertion Loss, Low VSWR, Low PIM(IM3)
Specifications
| Electrical Specifications | ||
| Frequency Range | Port1: 1710-1880MHzPort2: 1920-2690MHz | |
| Insertion Loss | ≤ 0.3dB | |
| Return Loss | ≥ 18dB | |
| Isolation | ≥ 40dB | |
| Impedance | 50Ω | |
| Input Power | ≥ 250W (CW avg.) | |
| PIM (IM3) | ≤ -155dBc @ 2×20W | |
| DC/AISG | By-pass(max.2500mA) | |
| Environmental Specifications | ||
| Lightning Protection | 3000mA; 10/350us pulse | |
| Operating Temperature | -20℃ to +60℃ | |
| Storage Temperature | -40℃ to +85℃ | |
| Environment Humidity | 5% to 95% | |
| Application | Indoor or outdoor, IP67 | |
| Mechanical Specifications | ||
| Connectors | 4.3-10 Female | |
| Parts material | Cavity: Aluminum silver plating; Connector: Copper silver plating | |
| Weight | 3.6Kg (twin unit) | |
| Dimensions (Without Connectors) | 132*116*48 mm (twin unit) | |

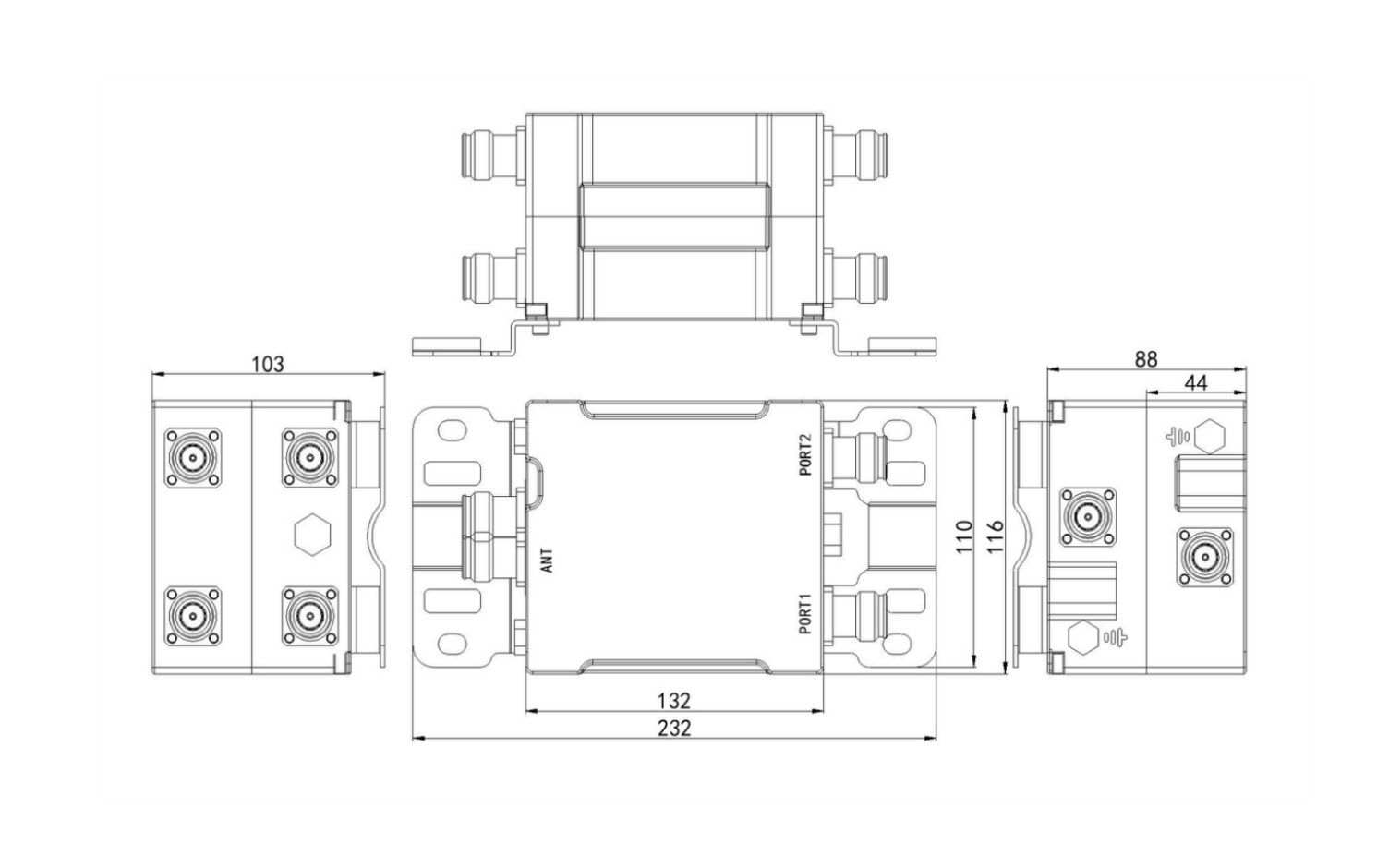

Product Dimension
