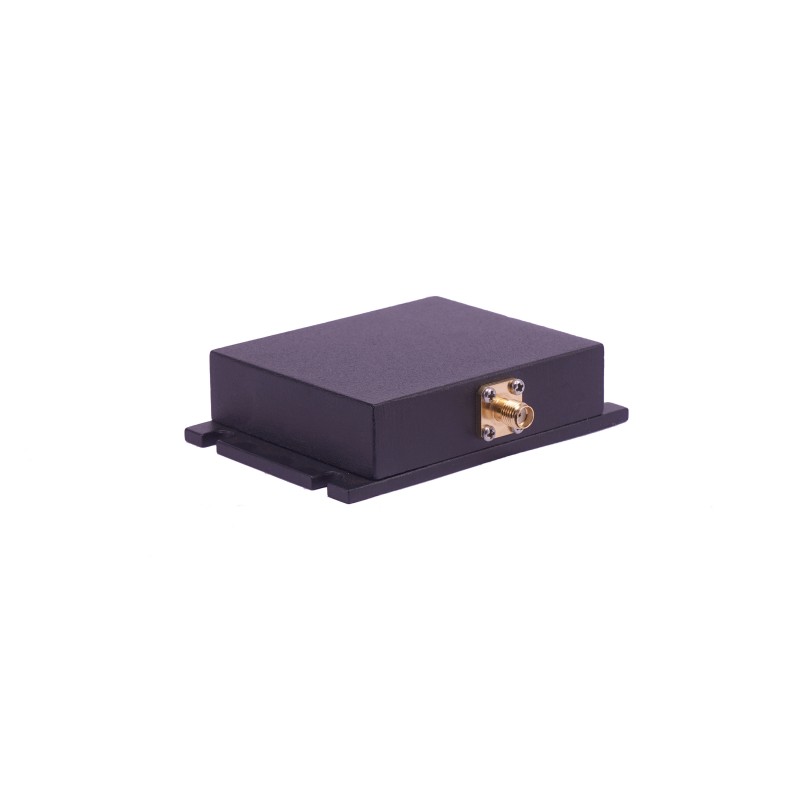

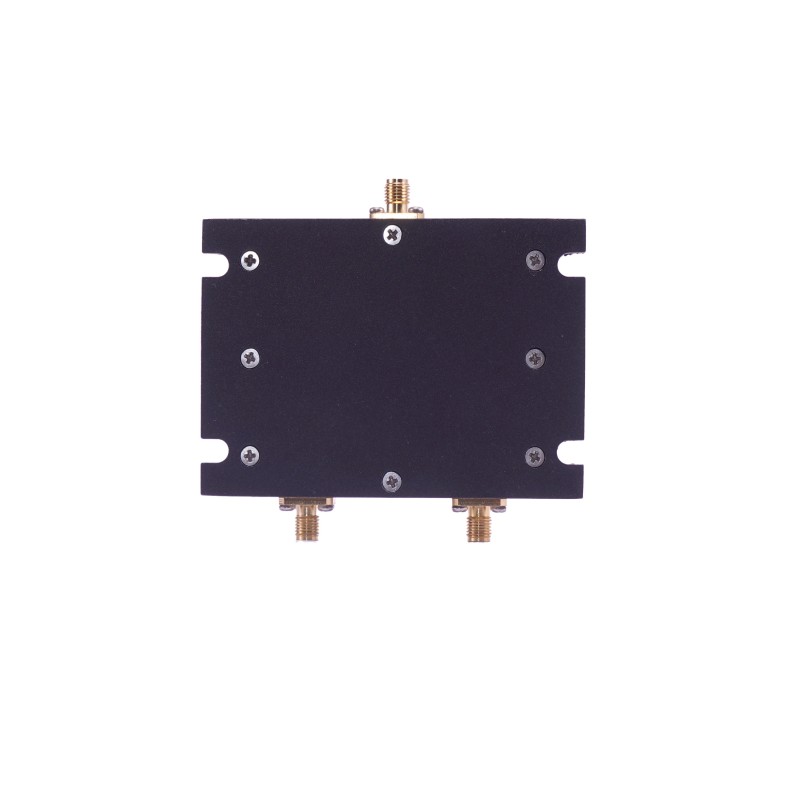

Power Splitter 698-3800MHz Wilkinson 2-way, 3-Way, 4-Way
video
Power Splitter 698-3800MHz Wilkinson 2-way, 3-Way, 4-Way

Power Splitter 698-3800MHz Wilkinson 2-way, 3-Way, 4-Way

698 to 3800 MHz Frequency Range
SMA Female connectors
≥22 dB Isolation Rating
≤0.9 dB Insertion Loss
3.0 dB Distribution Loss
50W max. Input Power
Rated IP45
Send Inquiry
Product Details ofPower Splitter 698-3800MHz Wilkinson 2-way, 3-Way, 4-Way



Power Splitter 698-3800MHz Wilkinson 2-way, 3-Way, 4-Way Description



This RF Power Splitter 2-Way is designed to provide high-performance power distribution for a wide frequency range of 698 to 3800 MHz. This precision-engineered device effectively splits RF signals, making it an essential component in modern communication systems. Its capabilities enable seamless integration into various applications, ensuring optimal signal performance.

Key Features:

698 to 3800 MHz Frequency Range

SMA Female connectors

≥22 dB Isolation Rating

≤0.9 dB Insertion Loss

3.0 dB Distribution Loss

50W max. Input Power

Rated IP45

Superior Isolation and Signal Integrity

With an impressive isolation rating of 22 dB, this power splitter minimises signal coupling between output ports, thereby enhancing overall signal integrity. This high level of isolation is crucial for preventing interference and ensuring clean, undistorted signals in any RF application.

Efficient Design for Versatile Applications

This RF Power splitter is suitable for indoor applications and designed with versatility in mind. Its microstrip design ensures minimal insertion loss, maintaining high efficiency in signal distribution. This device is ideal for connecting antennas in a variety of setups, making it a valuable addition to any RF system.

Robust Electrical Specifications

This power splitter features excellent electrical specifications, including a maximum input power of 50 W and a VSWR of ≤1.3. It operates effectively across a wide temperature range of -25 °C to +70 °C, making it capable of withstanding various environmental conditions. .

Compact and Lightweight Design

With dimensions of 66 x 52 x 21 mm and a weight of just 180 g, this RF Power splitter is compact and lightweight, making installation easy and convenient. Its sleek design allows for efficient use of space, whether in a rack-mounted setup or other confined areas, without compromising performance.

Durable and Weather-Resistant

Constructed with an ingress protection rating of IP45, this power splitter is designed to be resistant to dust and moisture, making it suitable for a variety of environments. Its grey and black colour options blend well in professional settings, while the durable construction ensures long-lasting performance, even in less-than-ideal conditions.

Compliance and Quality Assurance

This RF Power splitter 2-Way is ROHS compliant, ensuring it meets strict environmental standards. This commitment to quality and safety means users can trust that they are investing in a reliable and efficient product.



Specifications



Product NamePower Splitter
Frequency Range (MHz)698-3800MHz
For connecting…antennas2 Way3 Way4 Way
Distribution Loss(dB)3.04.86.0
Insertion Loss(dB)≤0.9≤1.2≤1.2
Isolation(dB)≥22
VSWR(dB)≤ 1.3
Intermodulation Products(dBm)≤ -120 dBc (with 2 x 43dBm)
Maximum Input (W)50 W
Operating temperature(℃)-40℃ to +80℃
Relative humidity(℃)0 ~ 95 %
Impedance(Ω)50 Ω
Size(mm)70x 60x 24 mm130x 86x 24 mm120x 108x 24 mm
Weight(g)0.4Kg0.7Kg0.8Kg
Connector Type4.3-10 Female
Ingress protectionIP65
ColorOxidation of Aluminum
RoHS compliant

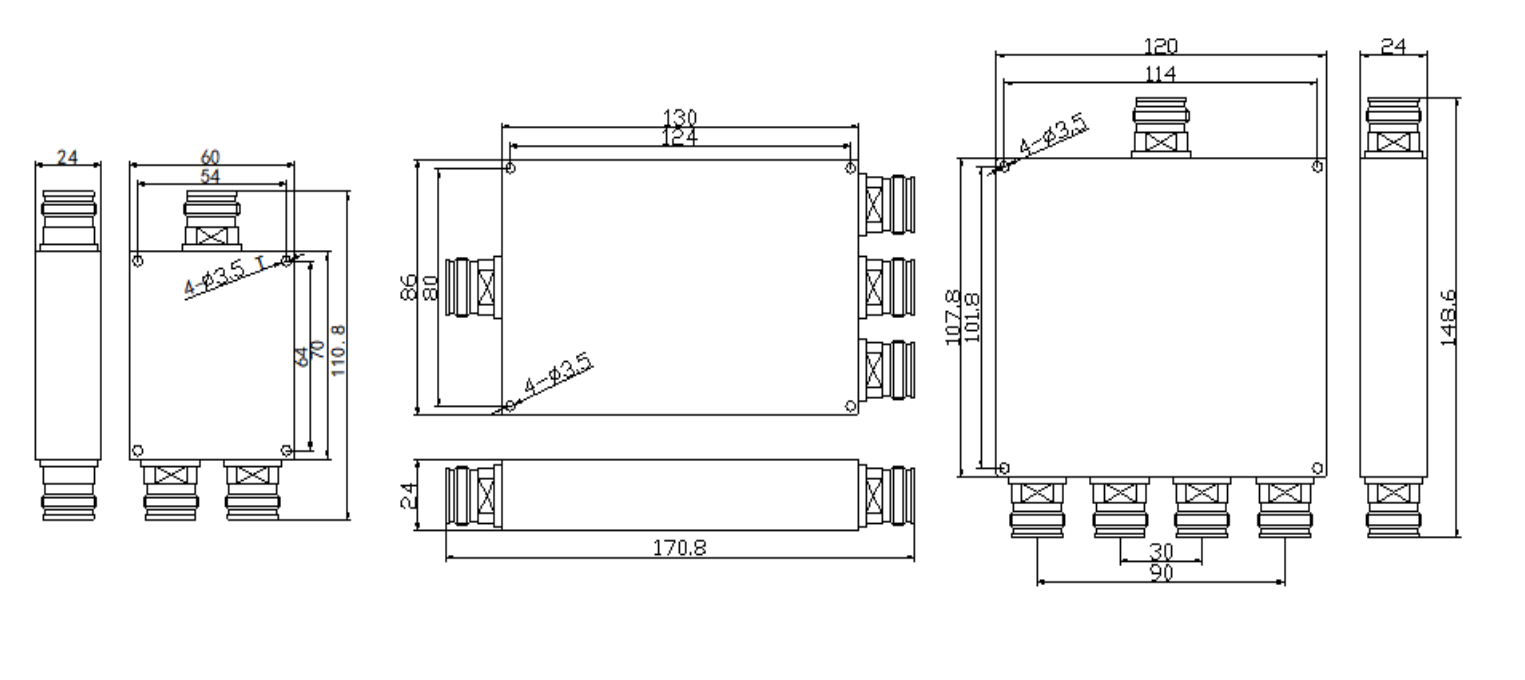

Product Dimension
