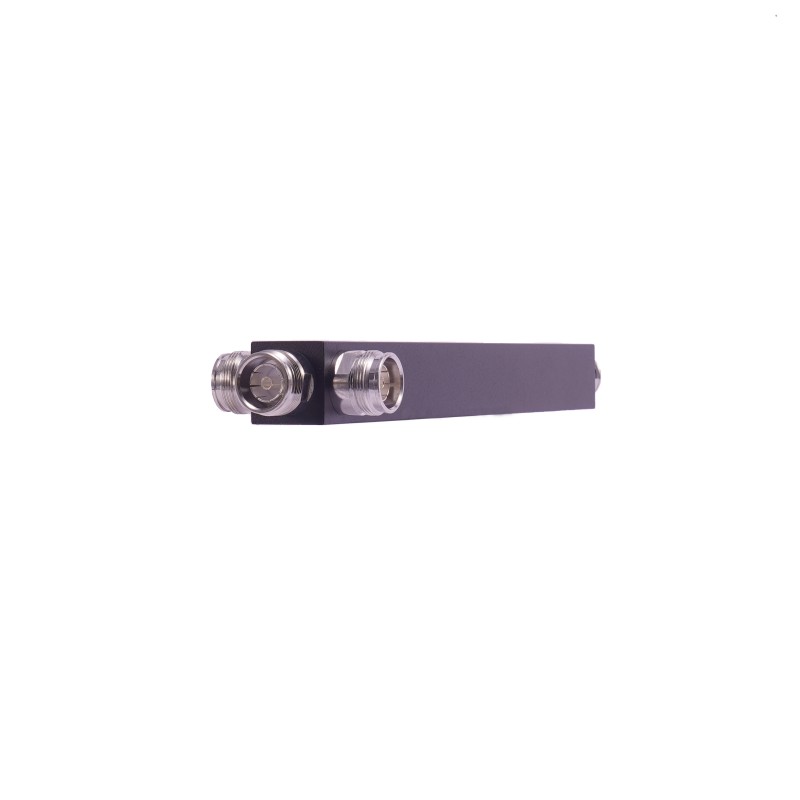

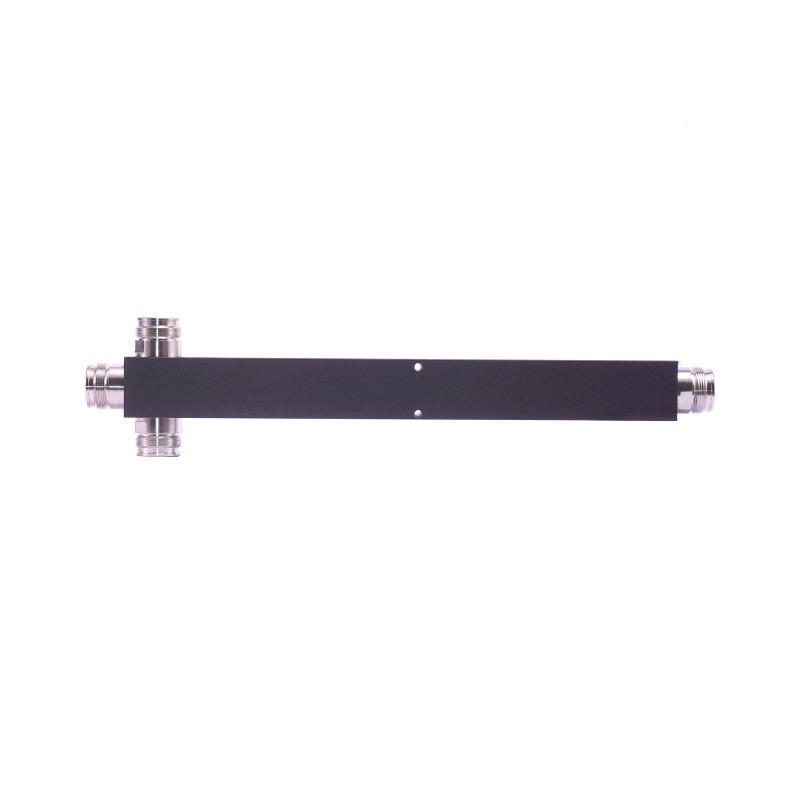

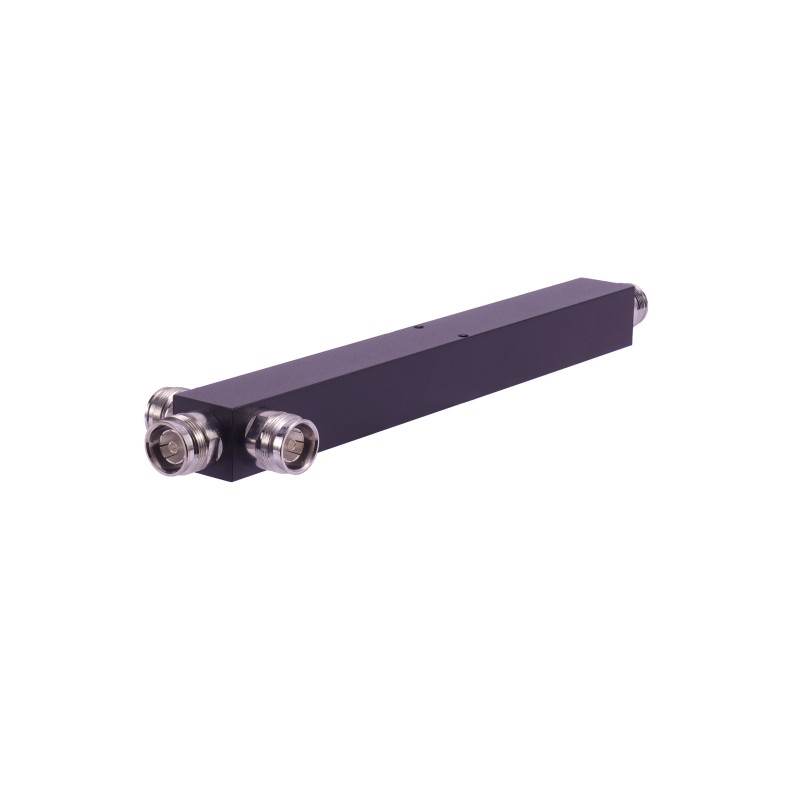

Ultra Wideband 3-way Low PIM High Power Splitter, 555–6000 MHz
Three-way Splitting
Low PIM
Reactive Design
High Power Handling
Seamlessly integrates with existing infrastructure.
Easy Installation
Send Inquiry
Product Details ofUltra Wideband 3-way Low PIM High Power Splitter, 555–6000 MHz
Ultra Wideband 3-way Low PIM High Power Splitter, 555–6000 MHz Description
This Ultra Wideband Two-way Low PIM High Power Splitter, designed for optimal network performance within the 555-6000 MHz frequency range.
Key features:
Wideband Coverage: Supports diverse frequencies for versatile applications.
Three-way Splitting: Efficiently distributes signals to multiple destinations.
Low PIM: Minimizes intermodulation distortion for signal integrity.
Reactive Design: Dynamically adjusts to impedance variations for optimized transfer.
High Power Handling: Robust construction withstands demanding applications.
Compatibility: Seamlessly integrates with existing infrastructure.
Easy Installation: User-friendly design for quick setup and minimal downtime.
Specifications
| Product Name | Power Splitter | ||
| FrequencyRange (MHz) | 555-6000MHz | ||
| Forconnecting…antennas | 2 Way | 3 Way | 4 Way |
| Distribution Loss(dB) | 3.0 | 4.8 | 6.0 |
| Insertion Loss(dB) | ≤0.3 | ≤0.4 | ≤0.5 |
| Isolation(dB) | / | ||
| Return Loss(dB) | ≥18 | ||
| VSWR(dB) | ≤ 1.3 | ||
| PIM3(dBm) | ≤ -160 dBc (with 2 x 43dBm) | ||
| Maximum Input (W) | 300 W | ||
| Operating temperature(℃) | -25℃ to +70℃ | ||
| Relative humidity(℃) | 0 ~ 95 % | ||
| Impedance（Ω） | 50 Ω | ||
| Size（mm） | 198 x 25x 25 mm | 215 x 25x 25 mm | 215 x 25x 25 mm |
| Weight(g) | 450 g | 510 g | 550 g |
| Connector Type | 4.3-10 Female/DIN Female/N Female | ||
| Ingress protection | IP65/IP67 | ||
| Color | Grey(ML440c)/Black | ||
| ROHS | Compliant | ||
Product Dimension
