200W dummy
1. Finned termination
2. Designed for wireless applications
3. Low VSWR
200W dummy Description
The 200w termination load is a high-quality electronic product designed specifically for testing and measuring electronic devices. This load is a resistive load that simulates a fixed, continuous load for testing power sources such as batteries, power supplies, and generators. The 200w termination load is a must-have tool for engineers, technicians, and researchers in the field of electronics.
1. Finned termination
2. Designed for wireless applications
3. Low VSWR
Product Details:
The 200W termination Load is a high-quality and reliable device designed to dissipate RF power effectively. It is an essential tool for testing and troubleshooting RF systems and equipment. This termination load is specifically engineered to handle high power levels while maintaining excellent performance and durability.
Features:
1. Power Handling Capacity: The 200W termination load is capable of handling up to 200 watts of RF power, making it suitable for high-power applications and testing scenarios.
2. Wide Frequency Range: This termination load operates seamlessly across a wide frequency range, ensuring compatibility with various RF systems and equipment.
3. Excellent VSWR Performance: With its low Voltage Standing Wave Ratio (VSWR), the termination load minimizes reflections and maximizes power absorption, guaranteeing accurate testing and better signal integrity.
4. Robust Construction: The termination load is constructed using high-quality materials, making it rugged and durable for long-lasting performance, even in demanding environments.
Advantages:
1. Accurate Power Dissipation: The 200W termination load dissipates RF power accurately and effectively, allowing for precise measurement and testing of RF components and systems.
2. Reliable Testing Tool: This termination load serves as a reliable and stable testing tool, ensuring accurate results and minimizing measurement errors.
3. Protects RF Equipment: By providing a controlled and consistent load, the termination load protects RF equipment from excessive power and potential damage during testing or troubleshooting activities.
4. Easy to Use: The termination load features a user-friendly design, enabling easy installation and connection, thus saving time and effort during testing procedures.
Specifications
Specifications: (first version)
Frequency Range: | DC - 3GHz |
VSWR | <1.2 |
Power Handling | 200W |
PIM (IM3) | <- 105dBc @ 2x20W |
Impedance | 50 Ω |
Relative Humidity | 5% - 95% |
Connector | 4.3-10 Female |
Color | Black |
Dimension | 227x142x64mm |
Net Weight | 1.800Kg |
Specifications (second version)
Fequency Range | Port1: 698-2700MHz | |
Port2: 3300-3800MHz | ||
Insertion Loss | ≤0.3dB | |
Return Loss / VSWR | ≤-19dB / 1.25 | |
Isolation | ≥50dB | |
Impedance | 50Ω | |
Input Power | ≤ 300W | |
PIM (IM3) | ≤ -155dBc @ 2×43dBm | |
DC/AISG | By-pass(max.2500mA) | |
Lightning Protection | 3KA; 10/350us pulse | |
Operating Temperature | -40℃ to +65℃ | |
Environment Humidity | 0% to 95% | |
Application | Indoor or outdoor, IP 67 | |
Connectors | 3pcs 4.3-10 Female(long neck) | |
Weight | 1.1Kg | |
Dimensions(Without Connectors) | 110*110*44mm |

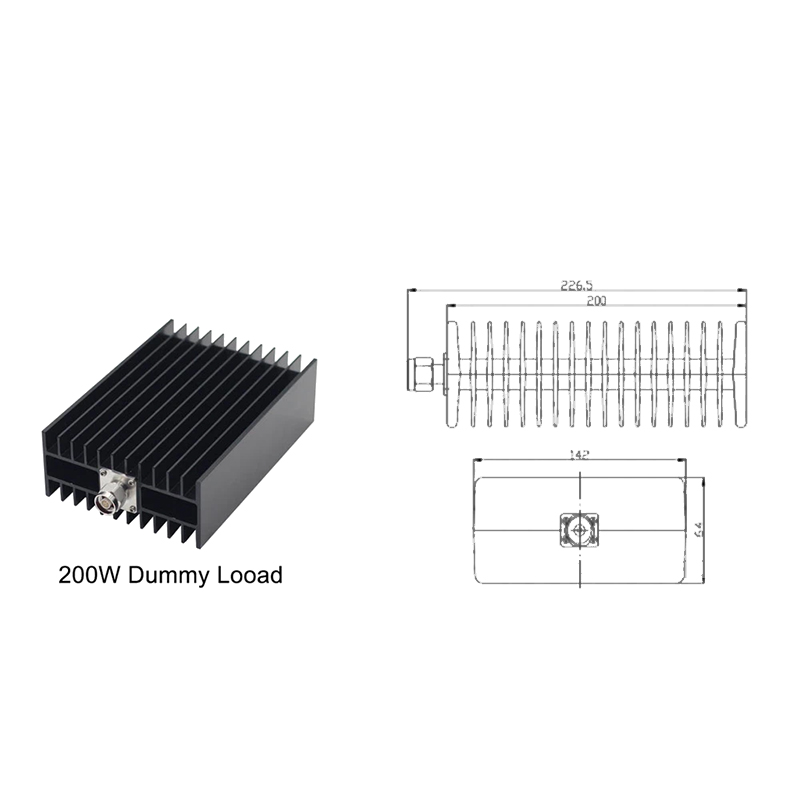

Product Dimension
