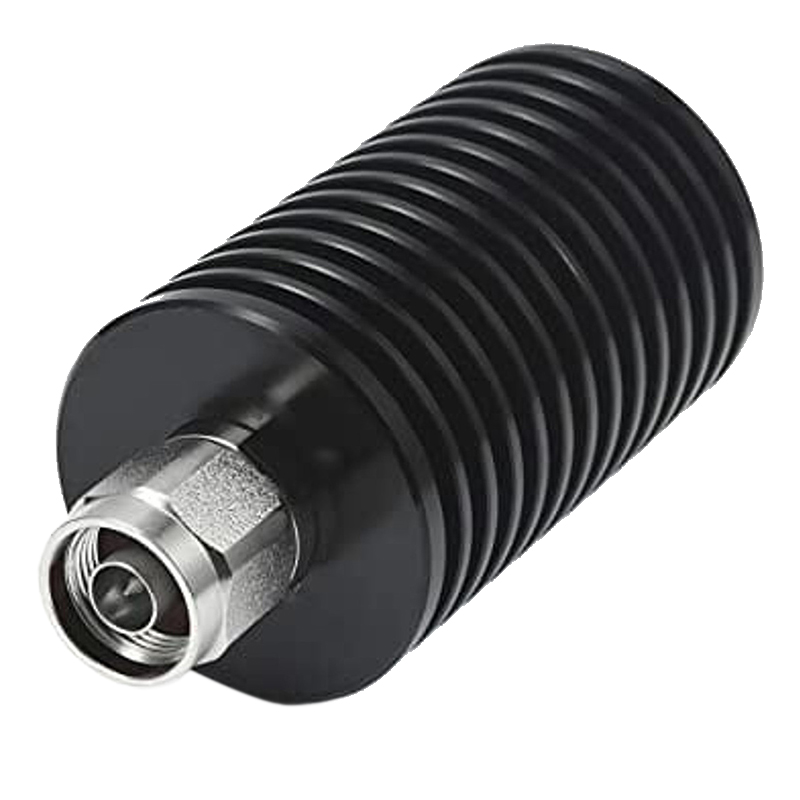

25W DUMMY LOAD
video
25W DUMMY LOAD

25W DUMMY LOAD

Frequency covers DC-6G
25W
Suitable for indoor applications
Send Inquiry
Product Details of25W DUMMY LOAD



25W DUMMY LOAD Description



RF loads and terminators are essential components in RF systems and equipment, ensuring proper signal integrity and protection. These devices are used to terminate unused ports, absorb RF energy, calibrate equipment, and prevent signal reflections.

RF loads and terminators come in various types and power ratings to suit different applications. They are commonly used in laboratories, testing environments, wireless communications, and RF systems integration. The termination load absorbs the RF signal, converting it into heat, while the terminator matches the impedance of the system.

Whether you need a 5W N Male Terminator or a 25W N Male Dummy Load, this category has a wide selection of options to choose from.

Overall, RF loads and terminators play a crucial role in maintaining signal quality, minimizing interference, and protecting RF equipment. By investing in high-quality products from this category, you can ensure optimal performance and efficiency in your RF systems.



Specifications



Product NumberRFT-DC6-25W
Frequency Range (MHz)DC-6000MHz
Return Loss(dB)≥21
VSWR(dB)≤ 1.2
PIM3(dBm)/
Maximum Input (W)25 W
Operating temperature(℃)-25℃ to +70℃
Relative humidity(℃)0 ~ 95 %
Impedance(Ω)50 Ω
Size(mm)65 x 30 mm
Weight(g)150 g
Connector TypeN-M/F
Ingress protection/
ColorBlack
ROHSCompliant

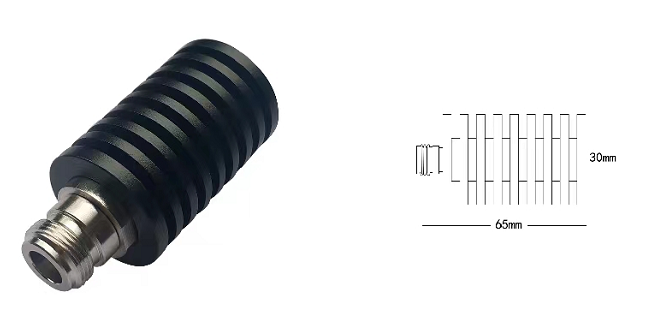

Product Dimension
