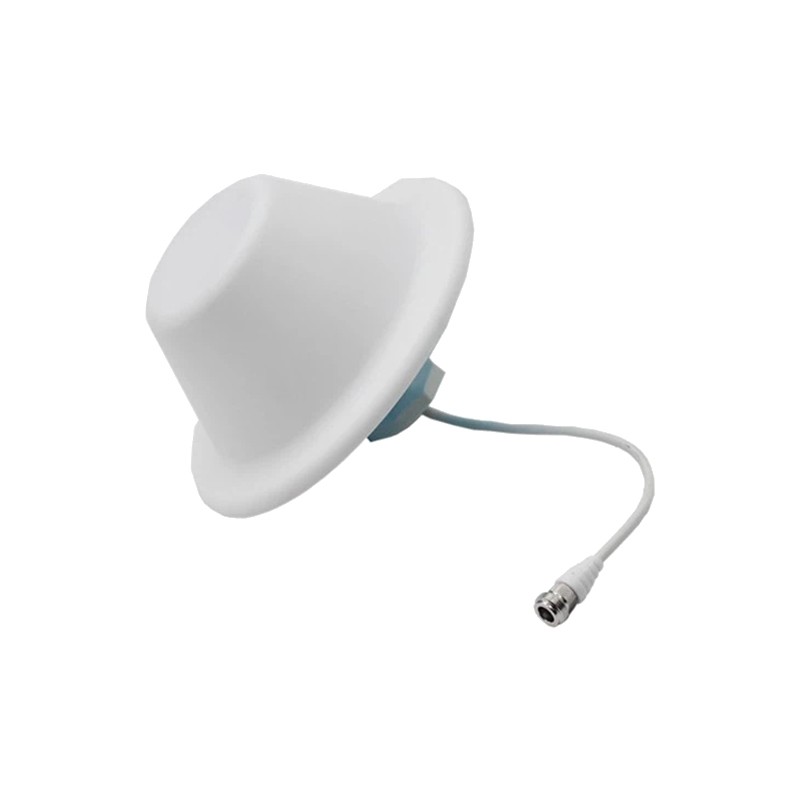

Indoor Omni Ceiling Antenna 698-3800MHz
2. Wide operating frequency range of 698-3800MHz.
3. Compact and low-profile design for easy installation in indoor environments.
4. High efficiency and reliable performance for improved signal quality.
5. Excellent Electrical Performance
Indoor Omni Ceiling Antenna 698-3800MHz Description
This antenna is a high-performance antenna designed for use in indoor wireless communication systems. This antenna provides 360-degree coverage and operates in the frequency range of 698-3800MHz. Its compact and low-profile design make it ideal for use in a variety of indoor applications, such as offices, hotels, and hospitals.
Main Features:
1. 360-degree coverage for omnidirectional signal transmission.
2. Wide operating frequency range of 698-3800MHz.
3. Compact and low-profile design for easy installation in indoor environments.
4. High efficiency and reliable performance for improved signal quality.
5. Excellent Electrical Performance
6. Totally Maintenance Free
Advantages:
1. Maximum coverage: The 360-degree coverage allows for omnidirectional signal transmission, ensuring maximum coverage and improved overall system performance.
2. Versatile installation: The compact and low-profile design make it ideal for easy installation in a variety of indoor environments, such as offices, hotels, and hospitals.
3. Improved signal quality: The high efficiency and reliable performance of the antenna result in improved signal quality and reduced signal loss.
4. Durable and long-lasting: Made with high-quality materials, this antenna is designed to be durable and long-lasting, ensuring reliable performance over time.
Specifications
Frequency Range(MHz) | 698-806 | 806-960 | 1710-2700 | 3300-3800 |
Gain(dBi) | 3.0 ± 0.5 | 3.0 ± 0.5 | 5.0 ± 1.0 | 5.0 ± 1.0 |
VSWR | ≤ 1.8 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
Polarization Type | Vertical | |||
PIM(IM3) | ≤ -140dBc @ 2 x 33dBm | |||
Horizontal Beamwidth | 360° | |||
Max Power | 50 W | |||
Input Impendence | 50 Ω |
Operating Temperature | -40 ℃ to +65 ℃ |
Relative Humidity | 5 to 95% |
Lightning Protection | DC ground |
Connector Type | N-Female |
Weight | 0.275 Kg |
Dimensions | Φ 186 x 85 mm (without connector) |
Radome Material | Uv-Protected ABS |
Radome Color | White |
Mounting Type | Ceiling Mount |
Product Dimension

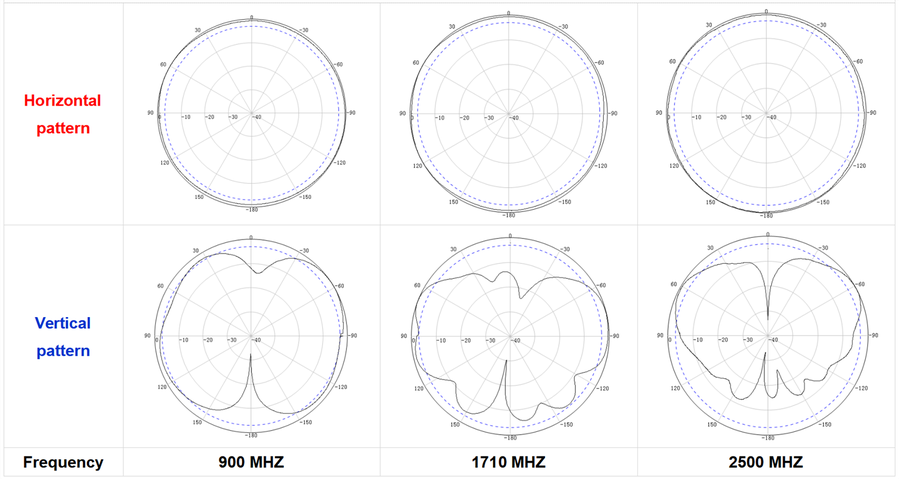

Radiation Patterns:
