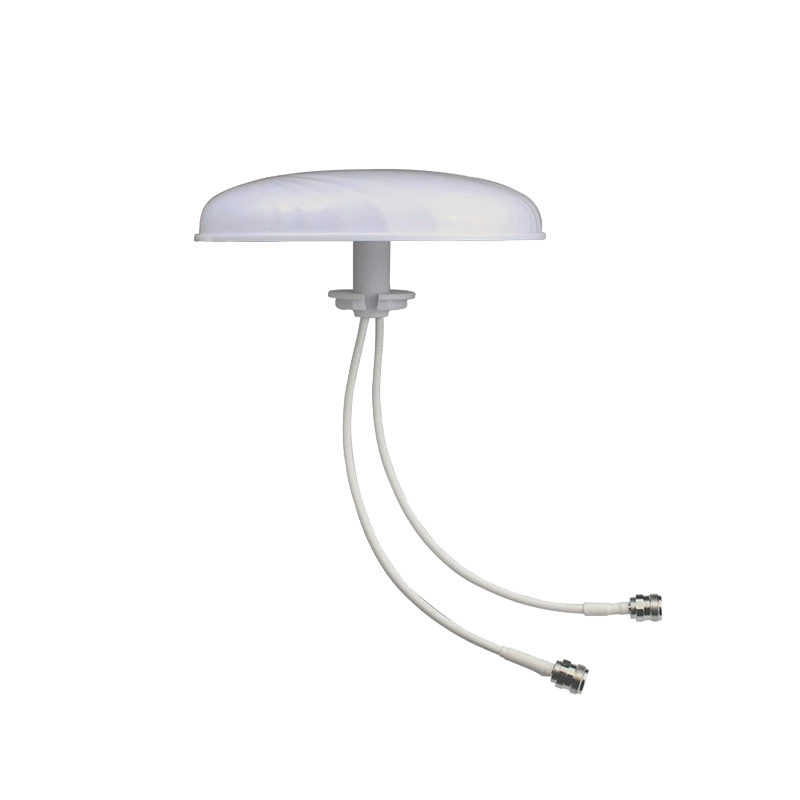

2x2 MIMO Omni Ceiling Antenna 698-3800 MHz
2. Support 698-3800MHz frequency range.
3. Ceiling mount design for easy installation and optimal placement.
4. High gain for extended coverage area.
5. Omni-directional radiation pattern for consistent signal strength in all directions.
6. Built-in lightning protection to prevent damage from electrical surges.
Send Inquiry
Product Details of2x2 MIMO Omni Ceiling Antenna 698-3800 MHz
2x2 MIMO Omni Ceiling Antenna 698-3800 MHz Description
The 4G 2*2 MIMO Omni Ceiling Antenna 698-3800 MHz 2x2 3/5 dBi is a high-performance antenna designed for use in indoor environments. It is ideal for use in applications such as wireless LAN, broadband internet access, and wireless video surveillance. This antenna has a 2×2, 4x4 MIMO configuration.
Features:
1. Excellent Electrical Performance
2. Wide Frequency Range
3. Totally Maintenance Free
4. High gain for extended coverage area.
5. Omni-directional radiation pattern for consistent signal strength in all directions.
6. Built-in lightning protection to prevent damage from electrical surges.
Advantages:
1. Increased data rates: The 2x2 MIMO configuration allows for higher data rates and better overall network performance.
2. Extended coverage area: The high gain of the antenna allows for an extended coverage area, reducing the need for additional access points.
3. Easy installation: The ceiling mount design allows for easy installation and optimal placement, reducing installation time and costs.
4. Consistent signal strength: The omni-directional radiation pattern allows for consistent signal strength in all directions, reducing the likelihood of dead zones in the coverage area.
5. Protection against electrical surges: The built-in lightning protection reduces the risk of damage from electrical surges, increasing the lifespan of the antenna.
Choose our Flat Omni Ceiling Antenna for a sleek, reliable, and cost-effective solution to your wireless connectivity needs. Enjoy strong and consistent wireless performance today with our innovative and high-quality antenna.
Specifications
| Frequency Range(MHz) | 698-806 | 806-960 | 1710-2700 | 3300-3800 |
| Gain(dBi) | 3.0 ± 1 | 4.0 ± 1 | 4.5 ± 1 | 5.0 ± 1 |
| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.8 | ≤ 2.0 |
| Polarization Type | ± 45° | |||
| Vertical Beamwidth | 90° | 85° | 45° | 35° |
| Horizontal Beamwidth | 360° | |||
| PIM(IM3) | ≤ -150 dBc @ 2 x 33 dBm | |||
| Max Power | 50 W | |||
| Input Impendence | 50 Ω | |||
| Operating Temperature | -40 ℃ to +65 ℃ |
| Relative Humidity | 5 to 95% |
| Lightning Protection | DC ground |
| Connector Type | N-Female |
| Weight | 0.5 Kg |
| Dimension | Φ 218 x 40 mm (without connector) |
| Radome Material | Uv-Protected ABS |
| Radome Color | White |
| Mounting Type | Ceiling Installation |
Product Dimension

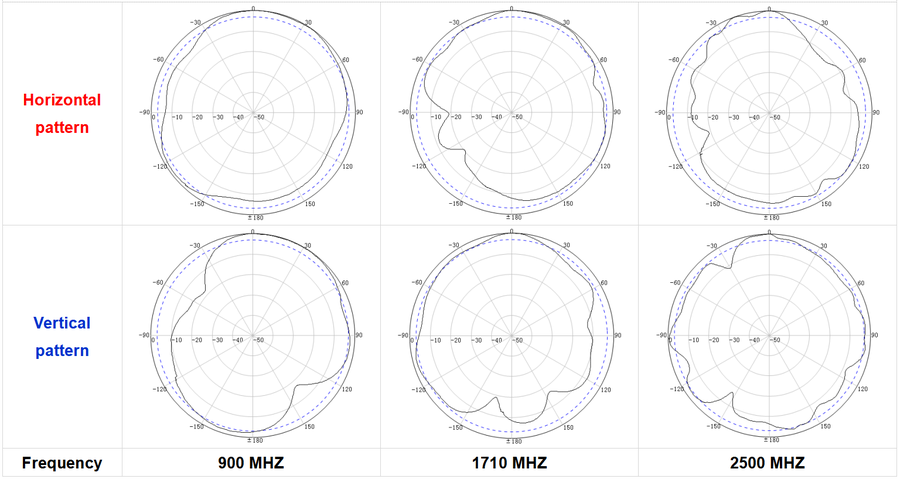

Radiation Pattern:
