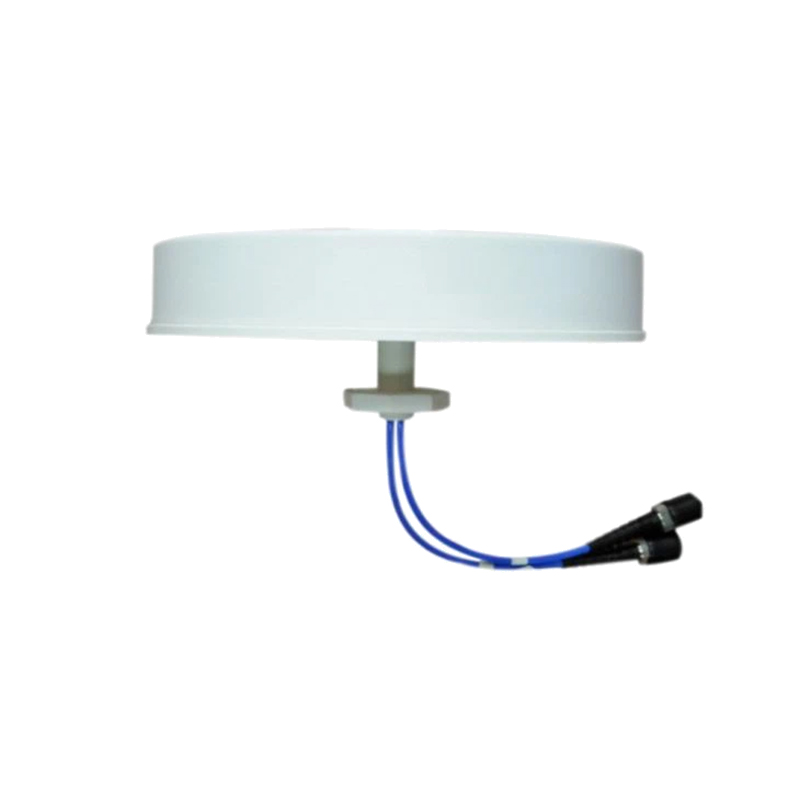

5G RF MIMO Omni Ceiling Antenna 698-4000MHz 3-5dBi
VSWR: ≤2.0
Polarization:linear
Horizontal Beamwidth:360°
PIM(IM3):≤-140dBc @ 2x2W
Max Power:50W
Input Impedance:50Ω
Gain: 3/5dBi
5G RF MIMO Omni Ceiling Antenna 698-4000MHz 3-5dBi Description
The 4G-5G MIMO Ceiling Antenna, 700 to 4000 MHz, 4.3-10 Female is designed for optimal indoor performance, delivering consistent coverage for voice and data applications. With its compact and visually unobtrusive design,, this antenna is perfect for residential, commercial, and industrial environments. It integrates seamlessly with repeater systems, offering a 360° horizontal beam width for complete internal coverage.
Key Features:
698 MHz to 960 MHz and 1690 MHz to 2700 MHz Frequency Range
3.0 dBi Gain for lower frequency bands (698-960 MHz) and 4.5 dBi Gain for higher bands (1690-2700 MHz)
Linear H/V Polarisation
MIMO Capability
2x N-Female Connectors
360° Horizontal and 90° Vertical Beam Width
≤-150 dBc Passive Intermodulation (PIM)
Compact Design
Handles up to 50W
Ideal for Repeater Systems
Wide Frequency Range and MIMO Technology
Operating across a frequency range of 700 to 4000 MHz, this antenna supports 3G, 4G, and 5G networks, ensuring compatibility with mobile broadband applications. Its MIMO (Multiple Input Multiple Output) design enhances data speeds and signal strength, making it ideal for high-performance mobile communications.
High Gain and Low PIM Performance
This MIMO Ceiling Antenna delivers a gain of up to 4.5 dBi, ensuring improved signal reception and coverage. Additionally, with low Passive Intermodulation (PIM) of ≤-150 dBc, the antenna provides excellent signal quality, minimising interference and improving overall network performance.
Durable Design for Long-Term Reliability
Constructed with high-quality materials, including a brass and PCB reflector and a UV-stabilised ABS radome, this antenna is built to withstand harsh indoor environments. Its operating temperature range of -40 °C to +65 °C ensures durability and reliable performance in a variety of settings.
Easy Integration with Multiple Connectors
Equipped with dual 4.3-10 female or N female connectors, this ceiling antenna is designed for easy integration into existing setups. Its 50-ohm input impedance ensures compatibility with most mobile network systems, making installation straightforward and hassle-free.
Ideal for Repeater Systems
This MIMO ceiling antenna is the perfect complement to repeater and booster systems. It ensures consistent mobile phone service distribution within buildings, making it ideal for spaces that require enhanced indoor signal coverage.
Specifications
Electrical | ||||
Frequency Range(MHz) | 698-806 | 806-960 | 1710-2700 | 3400-4000 |
Gain(dBi) | 3.0±0.5 | 3.5±0.5 | 4.5±0.5 | 5.0±1.0 |
VSWR | ≤2.0 | |||
Polarization Type | linear | |||
Vertical Beamwidth | 90° | 85° | 45° | 35° |
Horizontal Beamwidth | 360° | |||
PIM(IM3) | ≤-140dBc @ 2x2W | |||
Max Power | 50W | |||
Input Impendence | 50Ω | |||
Mechanical | ||||
Operating Temperature | -55 to +60℃ | |||
Relative Humidity | 5 to 95% | |||
Lightning Protection | DC ground | |||
Rated Wind Velocity | 210km/h | |||
Mechanical Specifications | ||||
Connector Type | 2*4.3-10 Female | |||
Weight | 0.5Kg | |||
Height | 40mm(without connector) | |||
Width | Φ218mm | |||
Radome Material | Uv-Protected ABS | |||
Radome Color | White, RAL9003 | |||
Mounting Type | Ceiling Mount |
Product Dimension

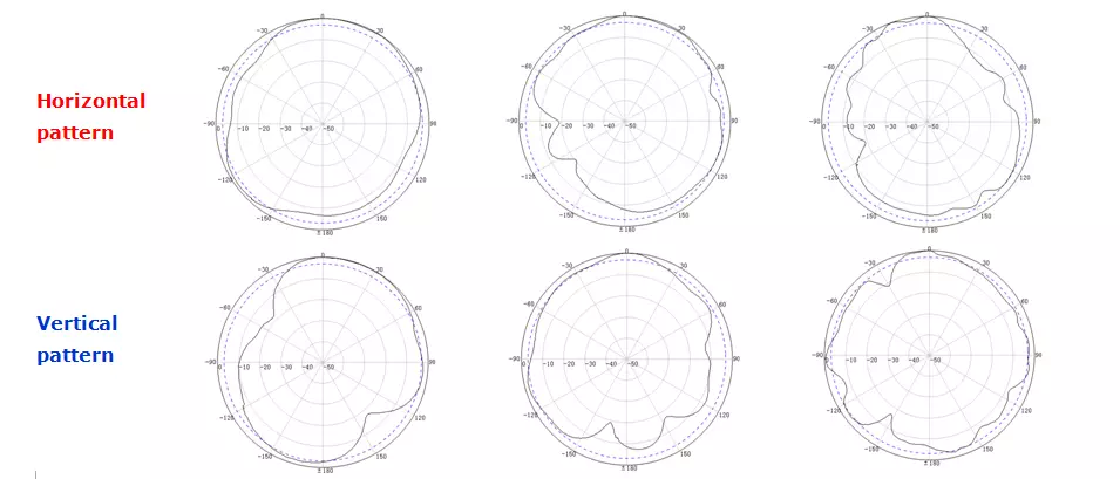

Radiation Patterns:
Applications:
