2W Attenuator

2W Attenuator

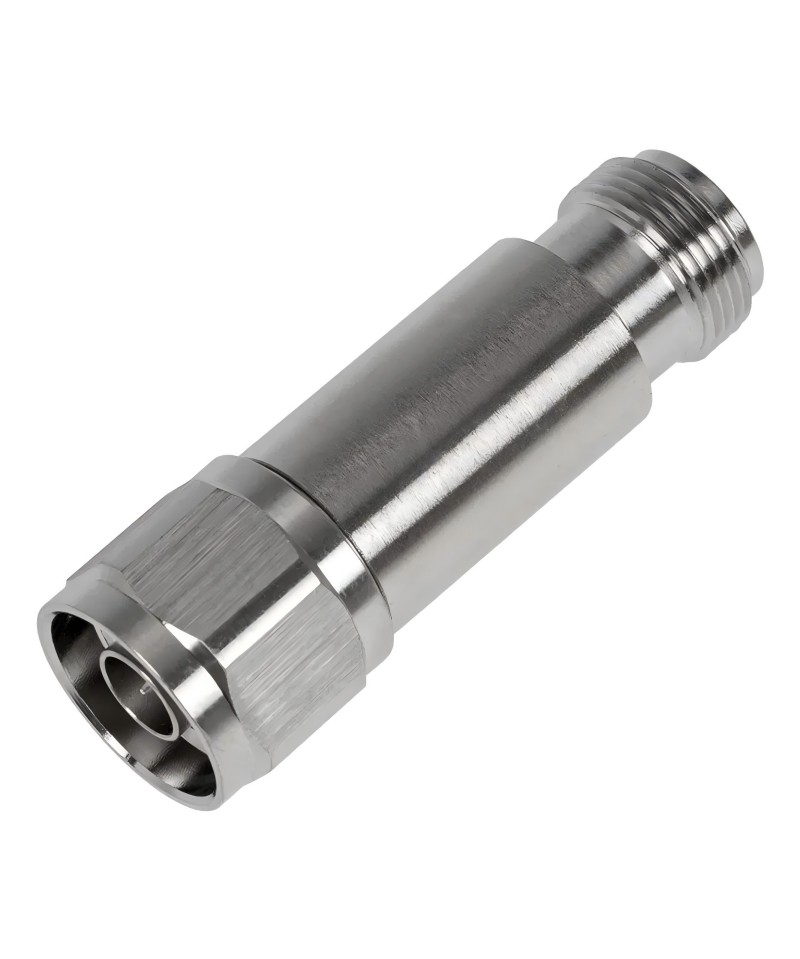

High-quality 2W RF attenuator with N-female to N-male connectors.
Reduces signal strength for optimal performance.
Durable and easy to install.
6, 10, 15, and 20 dB attenuation models available
Send Inquiry
Product Details of2W Attenuator



2W Attenuator Description



2W Attenuator N-Female are a passive coaxial component designed to reduce signal power by a specific value without deteriorating signal quality. This N-Type RF attenuator decreases signal strength by 6, 10, 15, and 20 dB in both path directions.

This attenuator is often used to reduce input power to a repeater when it reports an “input signal too strong” message, which commonly occurs when a donor antenna is mounted in close proximity to a cellular base station.

Key Features:

N Male to N Female connectors

Supports frequencies up to 6 GHz

Average power levels up to 2 Watts

6, 10, 15, and 20 dB attenuation models available.



Specifications



Frequency Range (MHz)DC-6000MHz
Return Loss(dB)≥21
VSWR(dB)≤ 1.2
PIM3(dBm)/
Maximum Input (W)2 W
Operating temperature(℃)-25℃ to +70℃
Relative humidity(℃)0 ~ 95 %
Impedance(Ω)50 Ω
Size(mm)32 x 15 mm
Weight(g)55 g
Connector TypeN Male to N Female
ColorBlack
ROHSCompliant

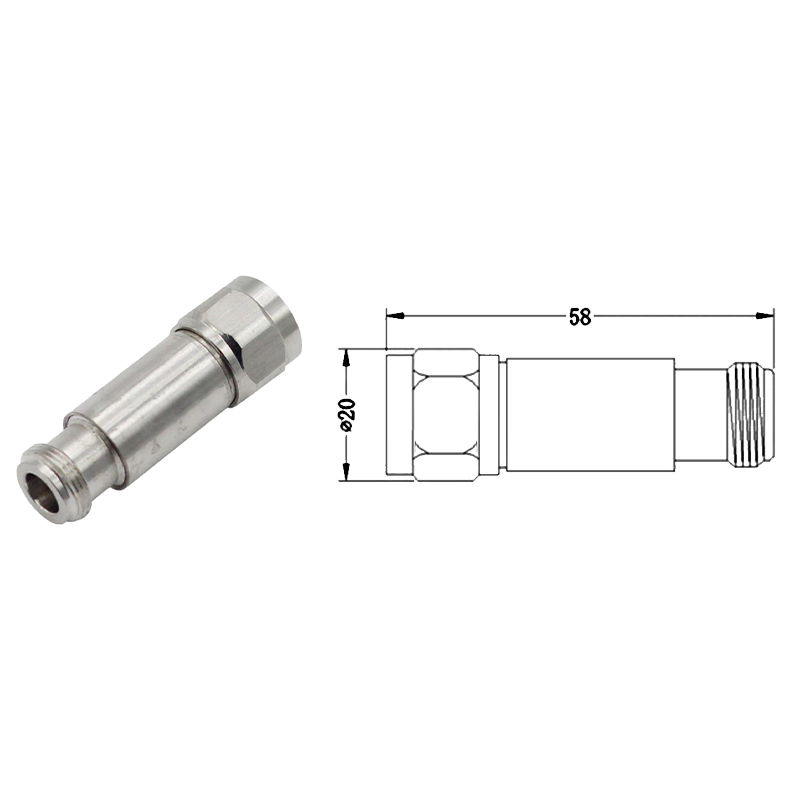

Product Dimension
