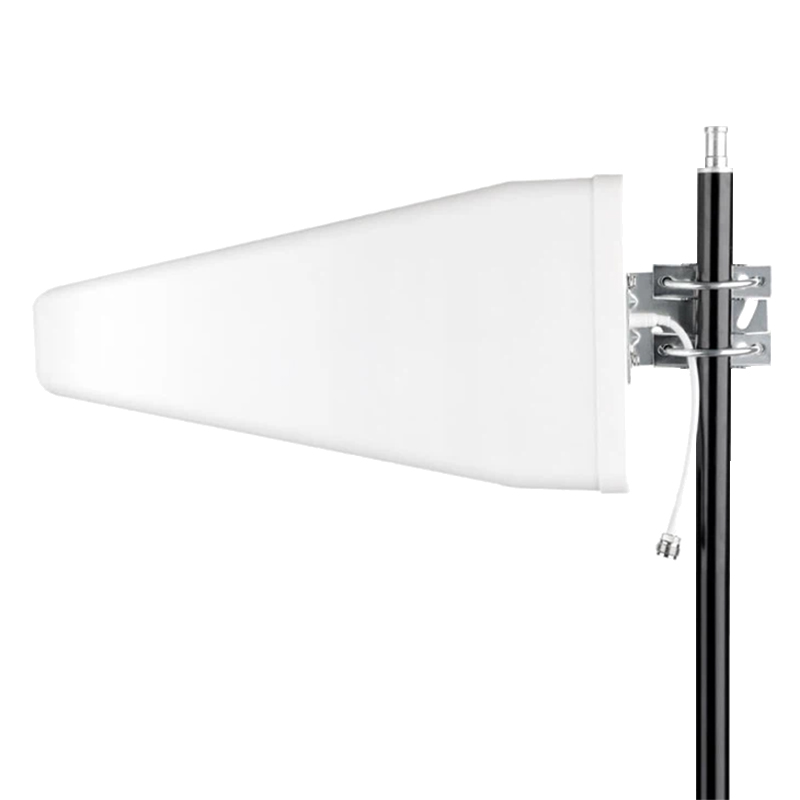

Log Periodic Antenna 698-3800MHz
Log Periodic Antenna 698-3800MHz Description
The 4G-5g Yagi Antenna Log Periodic Antenna 698-3800MHz is a high-performance antenna specifically designed for 4G networks. With its advanced features and exceptional performance, this antenna is ideal for enhancing signal strength and coverage in both rural and urban areas.
Features:
1. Wide Frequency Range: This antenna covers a wide frequency range from 698MHz to 3800MHz, making it compatible with various 4G LTE networks and ensuring reliable connectivity.
2. Yagi Design: The Yagi design allows for highly directional reception and transmission, maximizing signal strength and minimizing interference.
3. Log Periodic Logarithmic Structure: The log periodic logarithmic structure enhances the antenna’s bandwidth capabilities, ensuring efficient signal transmission across multiple frequencies.
4. Weatherproof Construction: The antenna features a weatherproof construction, allowing for reliable performance in various weather conditions.
Advantages:
1. Enhanced Signal Strength: The Yagi design of this antenna allows for highly focused signal reception and transmission, resulting in enhanced signal strength and improved overall network performance.
2. Extended Coverage: With its high gain and directional design, this antenna provides extended coverage, reaching areas that are far from the base station and improving signal reception in remote locations.
3. Reduced Interference: The Yagi design and log periodic logarithmic structure of the antenna help minimize interference from surrounding signals, ensuring clearer and more stable wireless connections.
4. Easy Installation: The antenna is easy to install and can be adjusted for optimal signal reception. It comes with all the necessary mounting hardware, simplifying the installation process.
Specifications
Electrical
| Frequency Range(MHz) | 698-806 | 806-960 | 1710-2700 | 3300-3800 |
| Gain(dBi) | 8.0 ± 0.5 | 9.5 ± 0.5 | 11.0 ± 0.5 | 11.5 ± 0.5 |
| VSWR | ≤ 1.8 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
| Polarization Type | Vertical | |||
| Front to Back Ratio(dBi) | ≥ 15 | ≥ 15 | ≥ 15 | ≥ 15 |
| Vertical Beamwidth | 105° | 95° | 78° | 59° |
| Horizontal Beamwidth | 87° | 68° | 56° | 48° |
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | |||
| Max Power | 50 W | |||
| Input Impendence | 50 Ω | |||
Environmental
| Operating Temperature | -40 ℃ to +65 ℃ |
| Relative Humidity | 5 to 95% |
| Lightning Protection | DC ground |
| Rated Wind Velocity | 210 km/h |
Mechanica
| Connector Type | N-Female |
| Weight | 0.87 Kg |
| Dimensions | 440 x 210 x 65 mm (without connector) |
| Radome Material | Uv-Protected ABS |
| Radome Color | White |
| Mounting Hardware | Φ 35 - Φ 50 mm |
Product Dimension

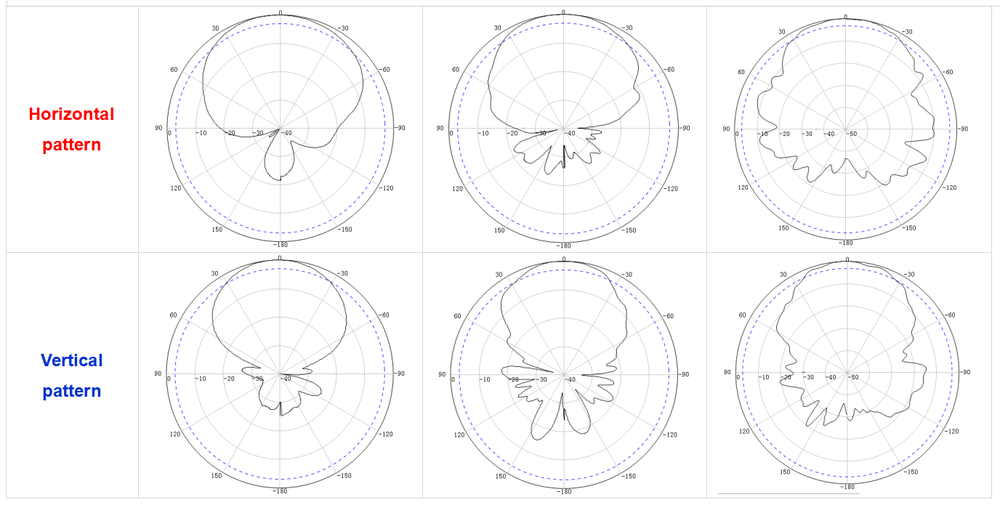

Radiation Patterns:
